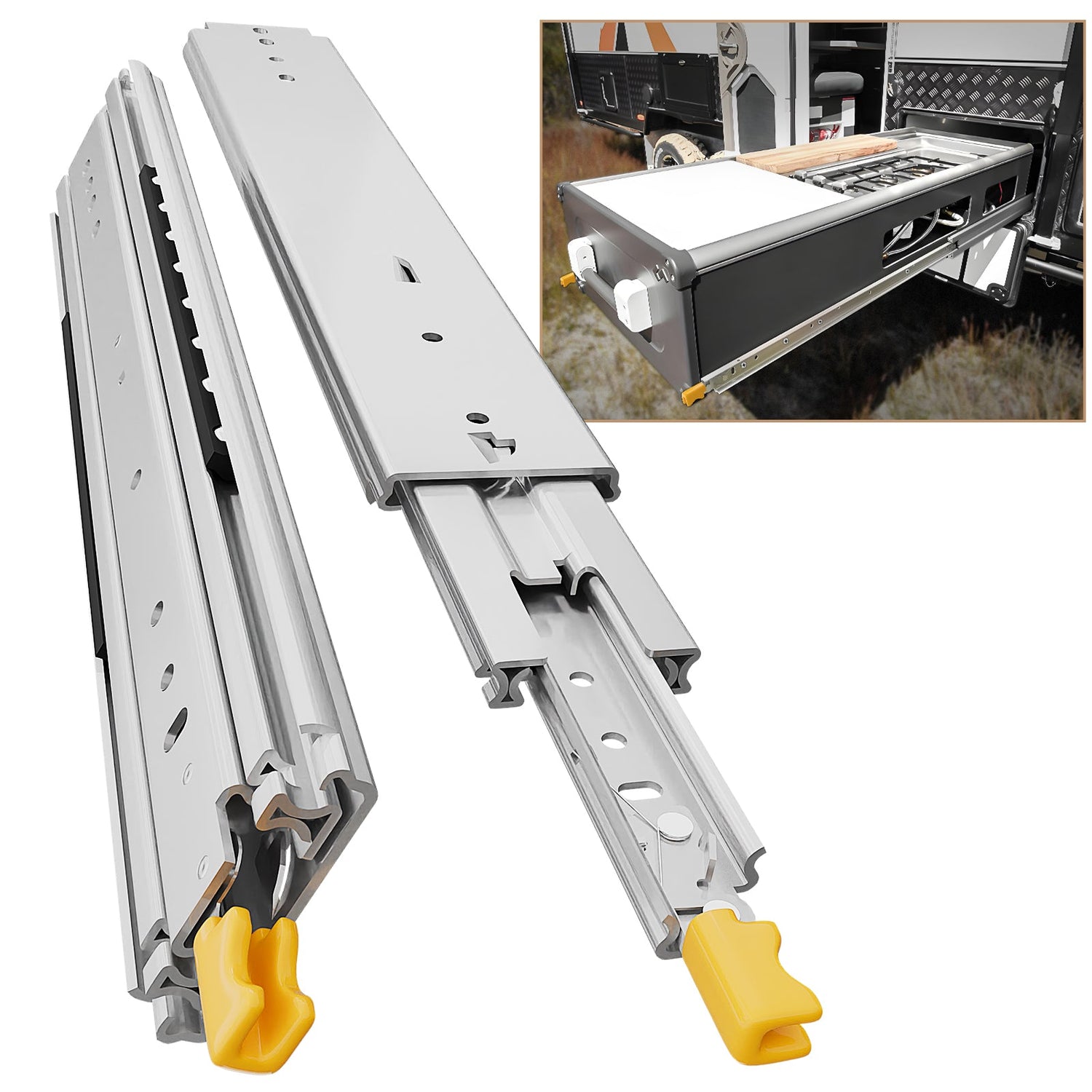

Building Reliable Heavy Load Storage with 500lb Drawer Slides
Heavy duty drawer slides with a 500lb load capacity are built for demanding storage environments such as RV pull out systems outdoor kitchens mobile workshops and DIY camper projects. These applications often involve heavy equipment limited space and constant movement during travel which makes slide strength and stability extremely important.
This guide walks through planning mounting and reinforcing heavy duty drawer slides to achieve safe and smooth full extension performance under substantial weight.
Where High Capacity Slides Make a Difference
In RV and camper layouts drawers may carry refrigerators generators cooking equipment or tool modules. Ordinary household slides cannot maintain stability under these conditions.
Heavy duty ball bearing slides are engineered with reinforced steel structures thicker profiles and precision tracks that support large loads while still allowing smooth travel. Full extension ensures that equipment can be accessed easily even in deep compartments.
Installation Planning for Mobile and Outdoor Environments
Unlike standard cabinets RV and outdoor setups experience vibration and shifting loads. Before installation evaluate not only the drawer size but also the supporting structure.
Cabinet walls should be strong enough to handle both vertical weight and horizontal force during travel. Additional framing or metal brackets are often recommended when carrying extremely heavy equipment.
Measure the interior width carefully and maintain equal side clearance. Slides must remain parallel to prevent binding under load.
Step by Step Mounting Process
Start with the cabinet members. Position them level and secure them firmly using high strength fasteners suited to the material whether wood metal or composite panels. Because these slides handle high weight secure anchoring is essential.
Next mount the drawer members onto the pull out platform or drawer box. Confirm that the front edges are aligned and the height matches on both sides.
Carefully insert the drawer into the cabinet and extend it slowly to verify smooth engagement of the ball bearing tracks.
Load Simulation and Stability Check
Before placing expensive equipment inside perform a staged load test. Begin with lighter items and gradually increase weight toward the intended operating load.
Observe whether the drawer remains level during extension and whether movement stays smooth. If necessary adjust alignment or reinforce mounting points.
In vehicle applications also check stability while the unit is parked on uneven ground as frame twist can influence slide behavior.
Reinforcement Tips for Maximum Safety
For loads approaching the upper capacity consider adding cross supports beneath the drawer base. Anti slip surfaces or mechanical stops may also help secure equipment during transit.
These additional measures improve long term reliability and reduce stress on the slide structure.
Maintenance in Harsh Conditions
Outdoor and mobile environments introduce dust moisture and vibration. Clean slide tracks periodically and inspect fasteners to ensure they remain tight.
Lubrication is generally minimal due to ball bearing design but routine checks help maintain smooth operation over time.
Dependable Performance for Heavy Duty Projects
When installed with proper planning and reinforcement 500lb drawer slides deliver strong stable and accessible storage for RV kitchens camper builds and industrial transport solutions. Their full extension capability allows efficient organization while maintaining safety and durability even under challenging conditions.
