Imagine this: You’ve installed a $10,000 industrial tool cabinet, only to have its drawers sag and jam within months because the slides couldn’t handle the weight. Frustrating? Absolutely avoidable.
As a drawer slide supplier with 20+ years of expertise, we’ve seen how misinformation about heavy duty drawer slides bottom mount leads to costly errors. This guide answers the top 5 Google questions professionals ask, backed by engineering insights and real-world testing. Whether you’re designing aircraft maintenance carts or high-traffic kitchen storage, you’ll learn:
- How to match slide capacity to your load requirements
- Critical installation mistakes even experienced builders make
- Why certified suppliers matter for mission-critical applications
What Makes Heavy Duty Bottom Mount Drawer Slides Unique?
1. Bottom Mount vs. Side Mount: Key Differences
Bottom mount slides are installed beneath the drawer, offering hidden hardware and maximal weight distribution. Unlike side-mounted variants, they’re ideal for:
- Industrial workbenches (tools, machinery parts)
- Medical carts (sensitive equipment requiring vibration resistance)
- Commercial kitchens (heavy pots, bulk ingredients)
2. Critical Features for Heavy-Duty Use
- Load Capacity: Ranges from 100 lbs (residential) to 500+ lbs (industrial-grade).
- Self-Closing Mechanisms: Maintains safety in high-vibration environments.

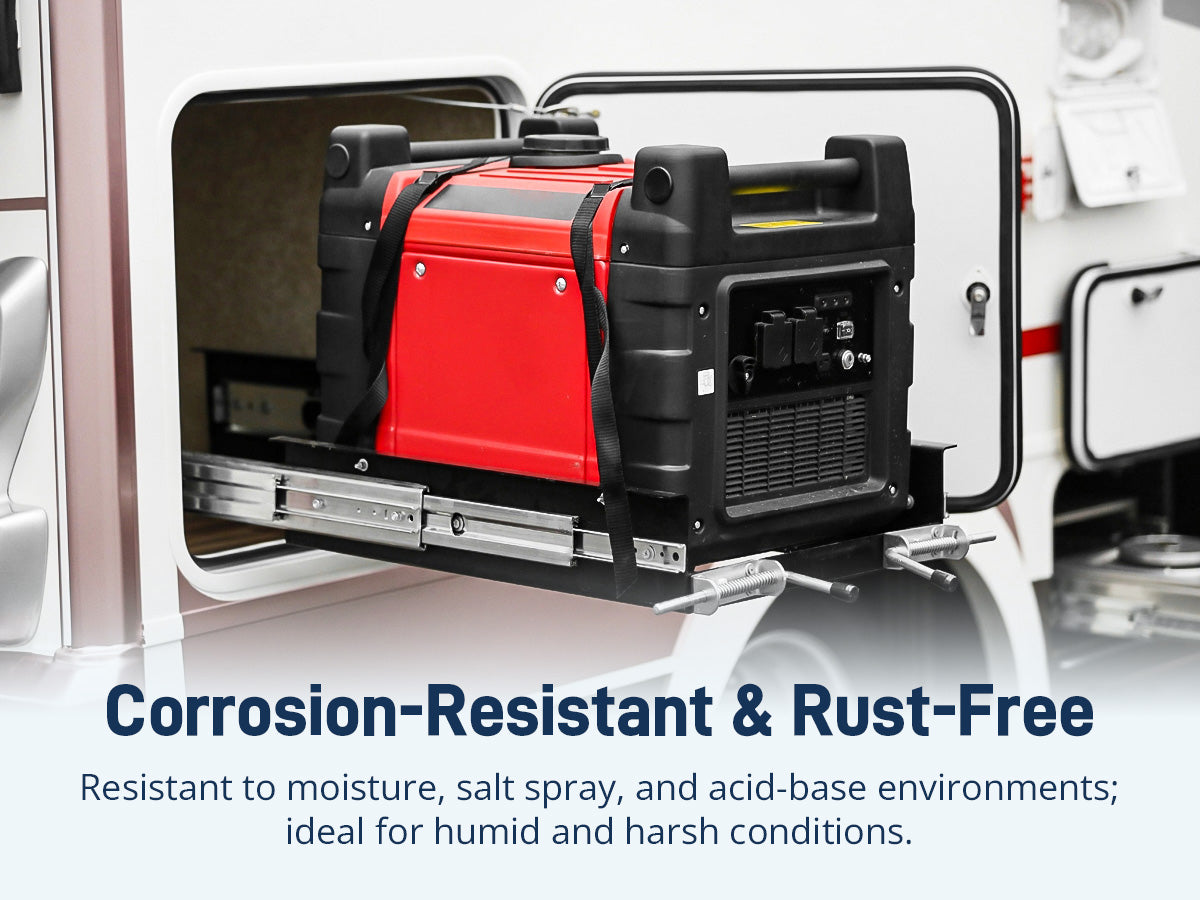

- Corrosion Resistance: 304 stainless steel or zinc-nickel coatings for humid/chemical settings.
3. Industries That Demand Bottom Mount Reliability
- Automotive: Tool storage in assembly lines
- Aerospace: Avionics component cabinets
- Healthcare: MRI machine access drawers
Top 5 Google Questions About Heavy Duty Bottom Mount Drawer Slides
1. “What Weight Can Heavy Duty Bottom Mount Slides Hold?”
Short Answer: From 100 lbs (home use) to 750 lbs (custom industrial slides).
Key Factors:
-
Static vs. Dynamic Load:
- Static: Weight when stationary (e.g., 500 lbs).
- Dynamic: Weight during movement (typically 60-70% of static rating).
- ANSI/BIFMA Standards: Certified slides undergo 100,000+ cycle tests.
Pro Tip: Always choose slides with 20% higher capacity than your max load to account for shock forces.
2. “How to Install Bottom Mount Slides on Uneven Surfaces?”
Uneven floors or warped cabinets? Here’s how professionals adapt:
Step 1: Shim Adjustment
- Use metal or polymer shims between the slide and cabinet base.
- Check leveling with a laser cross-line level (accuracy ±0.1°).
Step 2: Weight Distribution
- Center heavy items within the drawer to avoid lateral stress.
Step 3: Test Before Finalizing
- Load the drawer to 110% capacity and open/close 50 times.
3. “Are They Compatible With Soft-Close Mechanisms?”
Yes, but with caveats:
- Load Limits: Most soft-close systems max out at 150 lbs dynamic load.
-
Recommended Brands:
- Blum TANDEMBOX for light industrial (120 lbs)
- Accuride 3832E for heavy-duty (250 lbs)
Warning: Avoid retrofitting soft-close to non-compatible slides—it voids warranties.
4. “How to Prevent Sagging or Misalignment Over Time?”
Three culprits cause 90% of slide failures:
A. Material Fatigue
- Use cold-rolled steel (CRS) slides instead of aluminum for loads >200 lbs.
B. Improper Lubrication
- Apply PTFE-based grease annually (avoid petroleum—attracts dust).
C. Overloading
- Weigh your drawer contents with a digital floor scale quarterly.
5. “Where to Buy Heavy Duty Slides for Commercial Use?”
Avoid Amazon/Ebay for Industrial Projects:
- Risk of counterfeit products with falsified load ratings.
Certifications to Demand:
- ISO 9001: Quality management compliance.
- TÜV SÜD: Independent load testing verification.
Installation Guide: Avoid These 3 Costly Mistakes
Mistake 1: Ignoring Cabinet Frame Material
- Particleboard Cabinets: Reinforce mounting points with steel backer plates.
- Steel-Frame Cabinets: Use M8 bolts instead of screws for vibration resistance.
Mistake 2: Overlooking Slide Extension Length
- Full Extension: 100% access (e.g., hospital crash carts).
- Partial Extension: Saves 30% space (backup tool storage).
Mistake 3: Skipping Load Testing
- Conduct a 72-hour stress test with 120% max load before deployment.
Why Professionals Choose Us as Their Drawer Slide Supplier
1. Precision Engineering
- TÜV-Certified Load Testing: 150,000 cycles at 500 lbs.
- 10-Year Warranty: Industry’s longest coverage for commercial use.
2. Custom Solutions
- Adjustable widths (14"-36")
- Salt spray-tested coatings for marine environments.
3. Direct Engineer Access
- Request CAD models, installation blueprints, or material spec sheets in <24 hours.
Conclusion
Heavy duty drawer slides bottom mount aren’t just hardware—they’re the foundation of reliable, safe storage systems. By choosing slides with verified load ratings, proper installation, and certified suppliers, you prevent costly downtime and replacements.
