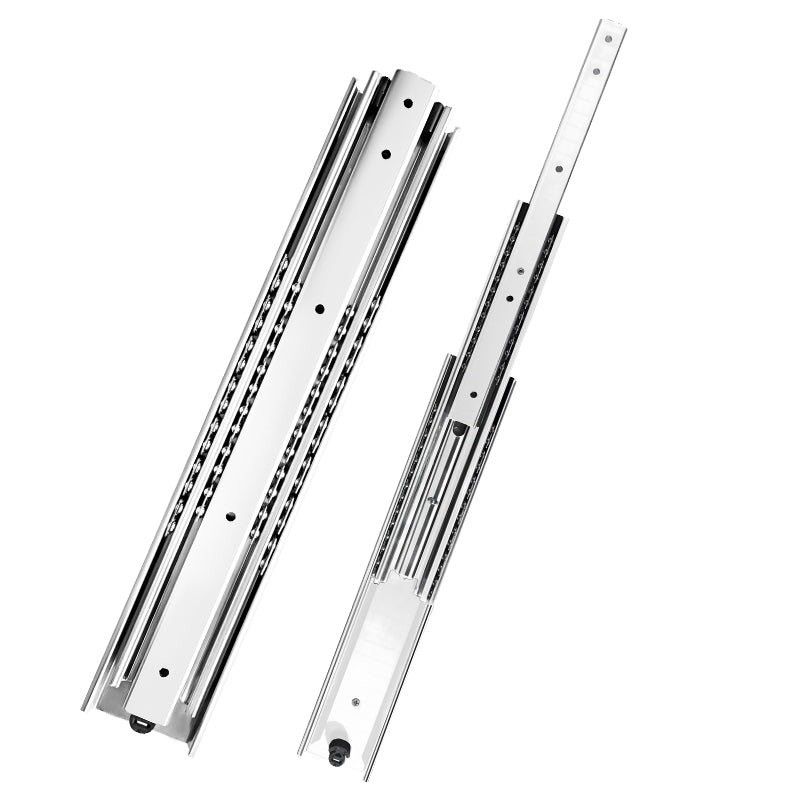

Heavy Duty Industrial Drawer Slides for High Load Storage Systems
Industrial drawers are often required to carry heavy equipment, tools, or materials while maintaining stable and smooth movement. In workshops, factories, warehouses, and commercial storage systems, ordinary drawer slides are usually not strong enough to handle frequent use and high loads. Heavy duty industrial drawer slides are designed specifically for these demanding conditions.
This tutorial explains the advantages of heavy duty industrial drawer slides, typical installation challenges, and correct installation methods to ensure safe and long lasting performance.
Why Industrial Applications Require Heavy Duty Drawer Slides
Industrial drawers are very different from household cabinets. They are wider, deeper, and carry significantly more weight. Heavy duty drawer slides provide the structural strength needed to support heavy loads without bending or sagging.
A high load capacity allows drawers to remain stable even when fully extended. Smooth ball bearing movement helps reduce friction and makes it easier to access tools or equipment. These features are essential in environments where efficiency, safety, and durability are priorities.
Common Challenges in Industrial Drawer Installation
Installing drawer slides in industrial settings requires careful planning.
Cabinet frames may be made of steel or thick plywood, requiring appropriate fasteners. Drawers are often large and heavy, making alignment more difficult during installation. If slides are not mounted level and parallel, drawers may bind or wear out prematurely.
Understanding these challenges helps avoid performance issues after installation.
Preparing for Installation
Proper preparation is critical for heavy duty applications.
Measure the cabinet opening and drawer dimensions accurately
Confirm side clearance requirements for the drawer slides
Ensure the cabinet structure is reinforced and capable of supporting heavy loads
Check that the drawer box is square and rigid
Strong mounting surfaces and precise measurements are essential for industrial drawer systems.
Step by Step Installation Guide
1 Install the Slides on the Cabinet Structure
Mount the cabinet side components to the inside of the cabinet or equipment frame. Ensure both slides are level, parallel, and securely fastened using suitable hardware.
2 Attach the Slides to the Drawer
Fix the drawer side components to both sides of the drawer box at the same height. Accurate positioning is important to support the full load evenly.
3 Insert the Drawer and Test Movement
Carefully slide the drawer into place and engage the slide mechanisms. Open and close the drawer several times to check smooth movement and full extension.
4 Load Test the Drawer
Gradually add weight to the drawer and test operation again. The drawer should remain stable, slide smoothly, and show no signs of sagging.
Common Installation Mistakes to Avoid
Even heavy duty drawer slides can fail if installed incorrectly.
Slides not mounted parallel or level
Weak or thin mounting surfaces without reinforcement
Unequal height between left and right slides
Overloading the drawer beyond the rated capacity
Avoiding these mistakes ensures safety and extends service life.
Maintenance Tips for Industrial Use
To maintain reliable performance in industrial environments.
Inspect mounting hardware regularly for loosening
Keep slide tracks free of dust and metal debris
Avoid sudden impacts or excessive overloading
Routine checks help prevent downtime and equipment damage.
Final Thoughts
Heavy duty industrial drawer slides are a critical component for high load storage systems. They provide strength, stability, and smooth operation where standard drawer slides are not sufficient.
With proper preparation, accurate installation, and regular maintenance, these drawer slides deliver dependable performance, improved safety, and long term durability in demanding industrial applications.
