Heavy Duty Bottom Mount Drawer Slides (A2047)

260 lb Load Capacity | Bottom Mount | Tri-Fold Full Extension | 1 Pair

Product Description

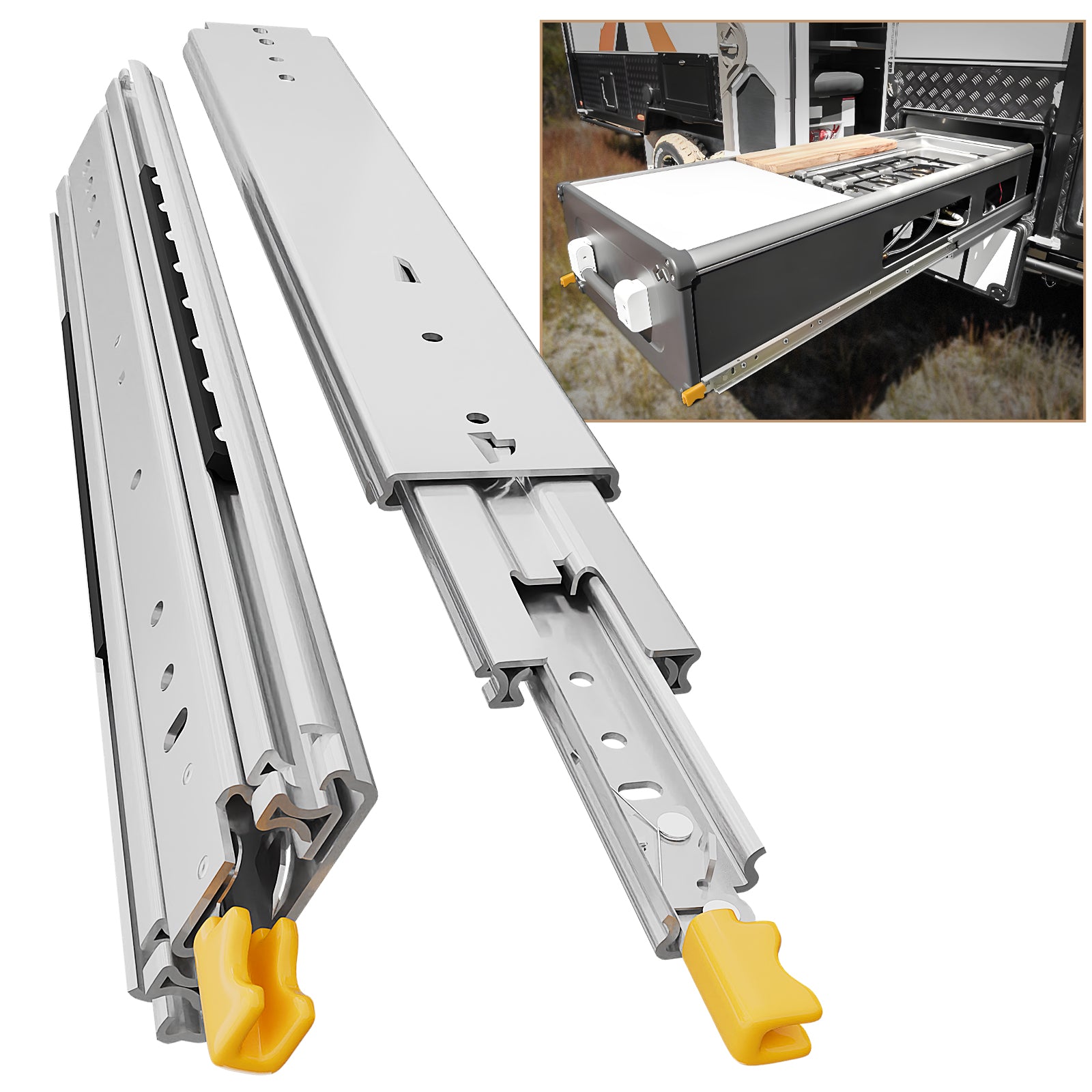

The AOLISHENG A2047 Bottom Mount Heavy Duty Drawer Slides are designed for hidden installation, offering both aesthetic appeal and practicality. Ideal for large containers, drawers, wardrobes, wine cabinets, under-stair lockers, and other heavy-duty applications.

The slides feature unique double-layer thickened steel plates, increasing load-bearing capacity to over 260 lb (118 kg). Tested by professional agencies, they have endured over 100,000 open-and-close cycles, ensuring long-lasting durability.

Anti-collision rubber pads at the ends protect the rails from damage. The tri-fold full-extension design allows the drawer to extend more than twice its closed length for complete access.

Key Features

• Hidden Bottom Mount: Concealed installation for a clean, high-end appearance.

• High Load Capacity: Double-layer steel construction supports 260 lb (118 kg).

• Long-Lasting Durability: Tested for over 100,000 cycles.

• Anti-Collision Protection: Rubber pads at the rail ends prevent damage.

• Full Extension: Tri-fold design allows full access to contents.

Installation Notes

• Heavy-duty slides cannot be disassembled to ensure user safety.

• Recommended height clearance: 2.12 in (53.8 mm) between cabinet bottom and drawer plate for proper bottom installation.

• Screws not included; use M5 screws according to your installation needs.

Applications

• Large containers and drawers

• Wardrobes and cabinets

• Wine cabinets

• Under-stair lockers

• Other heavy-duty furniture storage

Note: Minimum purchase 1 pair

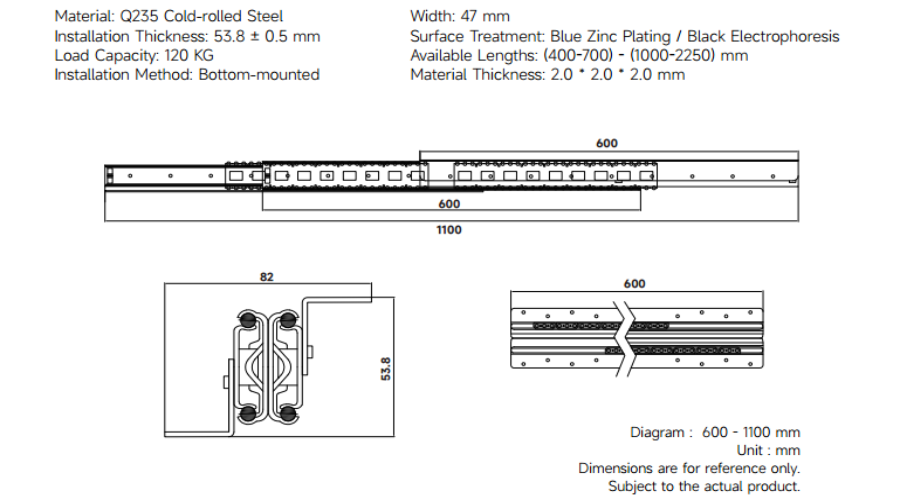

Product Dimensions:

• Width: 47MM
• Thickness: 2.0MM

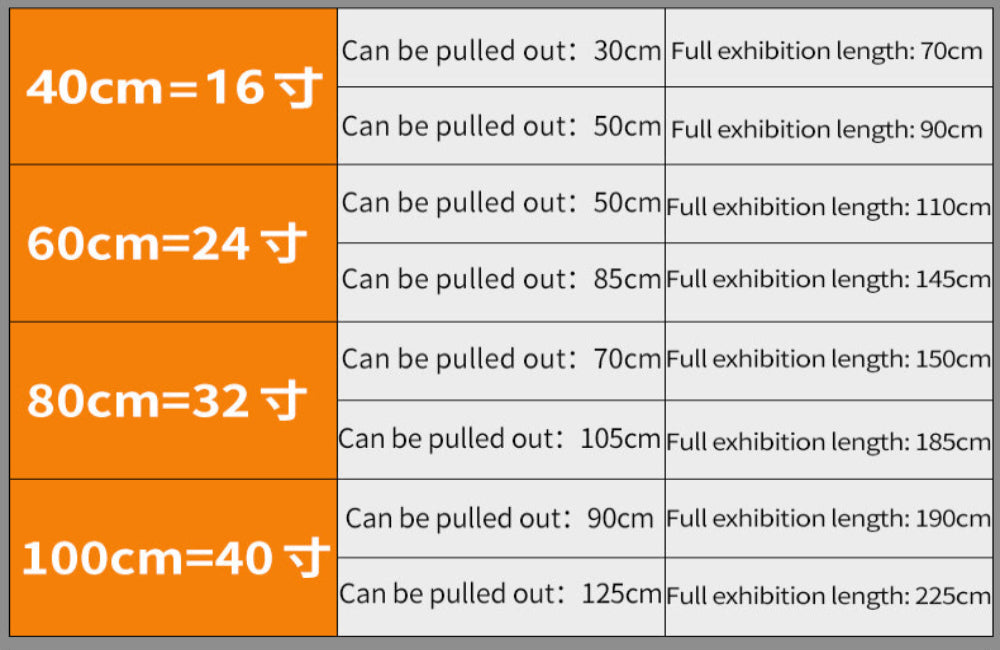

• Include Size: A2047-400-900MM A2047-600-1450MM A2047-800-1850MM A2047-1000-2250MM

Craft：

• Material: Q235 cold rolled steel
• Deal With: surface
• electroplating blue zinc
• Structure: non-detachable

Installation Requirements

• Installation thickness: 53.8+0.5mm
• Load capacity: 120KG/265LB
• Installation method: bottom mount
• Plate Thickness: Outer Slider (2.0mm) / Middle Slider (2.0mm) / Inner Slider (2.0mm)

Application scenario:

• Cabinets, stairs, heavy drawers, wardrobes, wine cabinets, various stair cabinets
