AOLISHENG 330 lb Heavy-Duty Full Extension Drawer Slides, Ball Bearing Side Mount for Industrial, DIY & Tool Storage – 1 Pair (A2071)

Full Extension Heavy Duty Drawer Slides

330 lb Load Capacity | Q235 Cold-Rolled Steel | Ball Bearing | Side Mount | Durable & Smooth

Product Description

The AOLISHENG 330 lb Full Extension Heavy Duty Drawer Slides are engineered for demanding applications where strength, smooth operation, and durability are essential. Ideal for car modifications, mechanical equipment storage, toolboxes, and shelving systems.

Made from 2.0mm thick Q235 cold-rolled steel, these three-section slides provide exceptional strength and longevity, supporting up to 330 lb (150 kg). Tested for over 50,000 open/close cycles, they ensure stable performance even under heavy loads.

The slides feature a ball bearing guide rail design for smooth operation, even when carrying heavy items. The surface is treated with a galvanized blue sealing process, protecting against corrosion and oxidation while keeping the slides easy to clean.

Key Features

• High Load Capacity: Supports up to 330 lb (150 kg) for industrial or household use.

• Full Extension Design: Three-section slides allow complete drawer access.

• Ball Bearing Guide Rails: Smooth and stable sliding under heavy loads.

• Durable & Rust-Resistant: Galvanized blue sealing enhances corrosion and oxidation protection.

• DIY-Friendly Installation: Includes detailed installation video tutorial for easy setup.

Installation Guide

• Maintain Slide Clearance: Leave 0.77 inches of space on both sides to prevent jamming or damage.

• Parallel Alignment: Ensure both slides remain parallel during installation for smooth operation.

• Mounting Screws: Not included; purchase M5 screws based on your installation needs.

• Safety Notice: Slides cannot be disassembled to ensure user safety.

• Weight Adjustment: Rails start at 18 inches; load capacity decreases for every additional 3 inches.

Applications

• Car modifications and vehicle storage

• Industrial equipment and mechanical drawers

• Tool cabinets, shelving, and heavy-duty storage

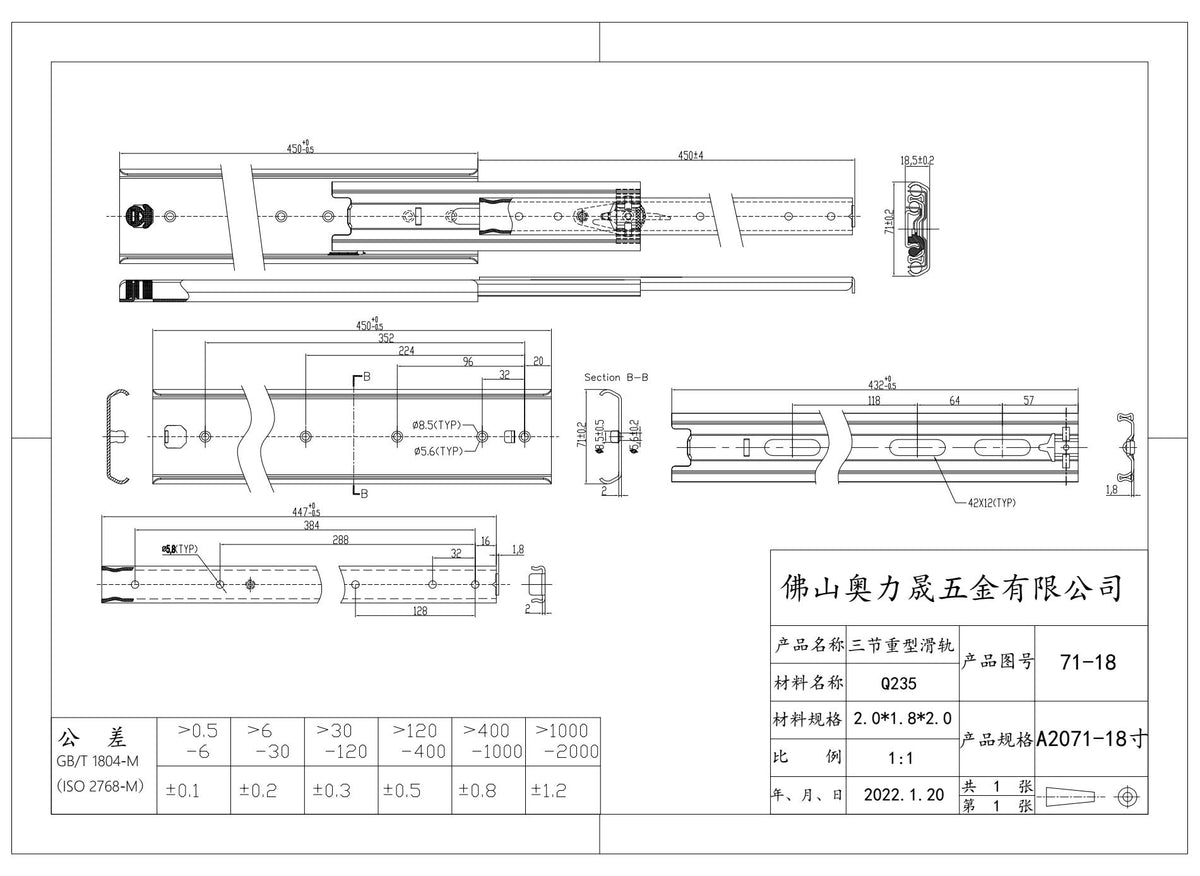

Product Dimensions:

• Width: 71MM
• Thickness: 2 MM
• Include Size: 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 inch

Craft：

• Material: Q235 cold rolled steel
• Bearing：Carbon steel solid steel ball
• Deal With: surface electroplating blue zinc

Installation Requirements：

• Installation thickness: 19±0.5mm
• Load capacity: 150KG/330LB
• Installation method: side mount
• Plate Thickness: Outer Slider (2mm) / Middle Slider (2mm) / Inner Slider (2mm)

Application Scenario：

shelves, cabinets, industrial drawers, RVs, trucks, woodworking, vending machines, etc.
