AOLISHENG 770 lb Twin-Slide Heavy-Duty Drawer Slides for RV, Truck & Industrial Storage - 1 Pair (A7625K5)

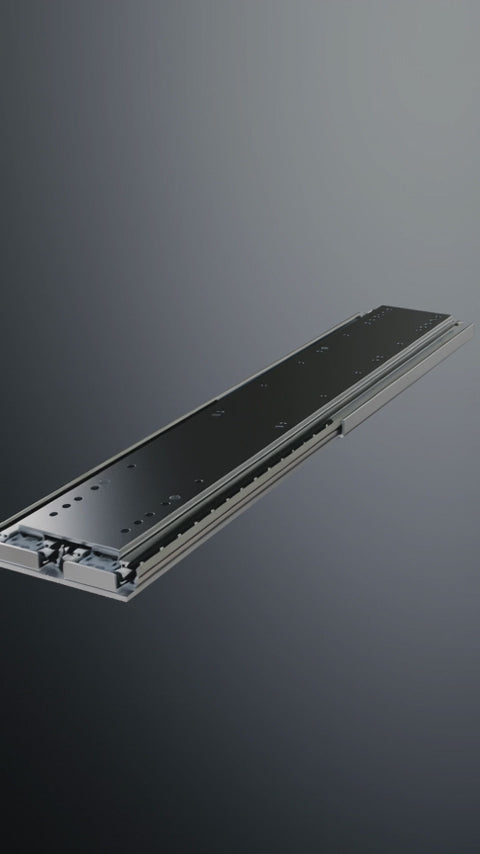

Twin-Slide Heavy Duty Drawer Slides

770 lb Load Capacity | Full Extension | Side Mount | 1 Pair

Product Description

The AOLISHENG Twin-Slide Heavy Duty Drawer Slides means two independent slides are installed side-by-side on each side of the drawer, whereas ordinary drawers typically have only one slide per side.  It is designed for demanding applications where safety, strength, and smooth operation are essential. Ideal for car modifications, mechanical equipment storage, toolboxes, shelves, cabinets, industrial drawers, RVs, trucks, vending machines, and ATM drawers.

Made from 2.5mm thick Q235 cold-rolled steel, these slides provide exceptional strength and durability, supporting up to 770 lb (350 kg). Tested for over 50,000 open/close cycles, they ensure long-lasting performance even under heavy loads.

The surface is treated with a galvanized blue sealing process, isolating the slides from air and water exposure for superior corrosion and oxidation resistance.

Key Features

• Twin-Slide Dual-Rail Architecture: Uses two parallel slides on each side (4 slides total) to eliminate shaking, tilting, and jamming under ultra-heavy loads.

• 770 lbs (350 kg) Extreme Load Capacity: Engineered from 2.5mm thick Q235 cold-rolled steel, tested for over 50,000 open/close cycles.

• Full Extension Access: 3-fold full extension design enables complete access to deep drawers and heavy machinery storage.

• Smooth & Sturdy Glide: Industrial solid steel ball bearings provide fluid, low-noise, and effortless motion under max capacity.

• 5µm Anti-Corrosion Zinc Plating: Blue galvanized sealing coating passes 48-hour salt spray testing (-15°C to 50°C working range).


Specifications Chart

Brand: AOLISHENG

Structure Type: Twin-Slide / Parallel Dual-Rail Design

Load Capacity: 770 lbs / 350 kg

Extension Type: Full Extension (3-Fold)

Mounting Type: Side Mount

Material & Thickness: Q235 Cold-Rolled Steel (2.5 mm)

Finish / Coating: Galvanized Blue Zinc Plated (Anti-Corrosion)

Durability Rating: 50,000+ Cycles

Package Quantity: 1 Pair

Installation Guide

• Maintain Parallel Alignment: Keep both slides parallel during installation to ensure smooth operation.

• Mounting Screws: Not included; purchase M6 screws based on your installation scenario.

• Safety Notice: Slides cannot be disassembled to ensure user safety. Locking mechanism only works when fully closed or fully opened.

Applications

• Workshops, Kitchens

• Industrial equipment and mechanical drawers

• Heavy-duty tool cabinets and shelving

• RVs, trucks

Product Size:

• Item Dimensions LxWxH 12.8 x 3.35 x 2.56 inches
• Thickness: 1.2MM
• Size included: 10 12 14 16 18 20 22 24 inch

Process:

• Material: Q235 cold rolled steel
• Function:soft close with lock
• Handling: blue zinc plating on the surface
• Structure: detachable

Installation requirements:

• Installation thickness:5MM
• Load capacity:35KG/78LBS
• Installation method: Under Mount
• Plate thickness: Outer Slider (1.8mm) / Middle Slider (1.5mm) / Inner Slider (1.0mm)

Application scenario:

• Ideal for kitchens, offices, shop fixtures, institutional and residential trades, cabinets, warehouses, containers, industrial drawers, RV chests of drawers and more.

Packing:

• 2pcs/pair (One left and right), mounting screws
