AOLISHENG 100 lb Full Extension Side-Mount Drawer Slides for Kitchen Cabinets – 10 Pairs (A4510)

DIY Wooden Drawer Slides

100 lb Load Capacity | 3-Fold Full Extension | Side Mount | 1 Pair

Product Description

The AOLISHENG DIY Wooden Drawer Slides are designed for smooth, quiet operation and long-lasting durability. The electrophoresis black finish isolates direct contact with water and air, preventing oxidation and rust while enhancing corrosion resistance.

These slides feature a 3-fold full-extension, sturdy ball-bearing design that is detachable for easy installation. Tested by professional institutions, they are rated for over 100,000 open-and-close cycles with a normal service life exceeding 30 years. Quiet and friction-free operation ensures low noise and secure use.

Supports up to 100 lb (45 kg), making them suitable for a wide variety of household and residential drawer applications.

Key Features

• Durable & Corrosion-Resistant: Electrophoresis black finish prevents rust and oxidation.

• Quiet, Smooth Operation: Ball-bearing system ensures friction-free movement with low noise.

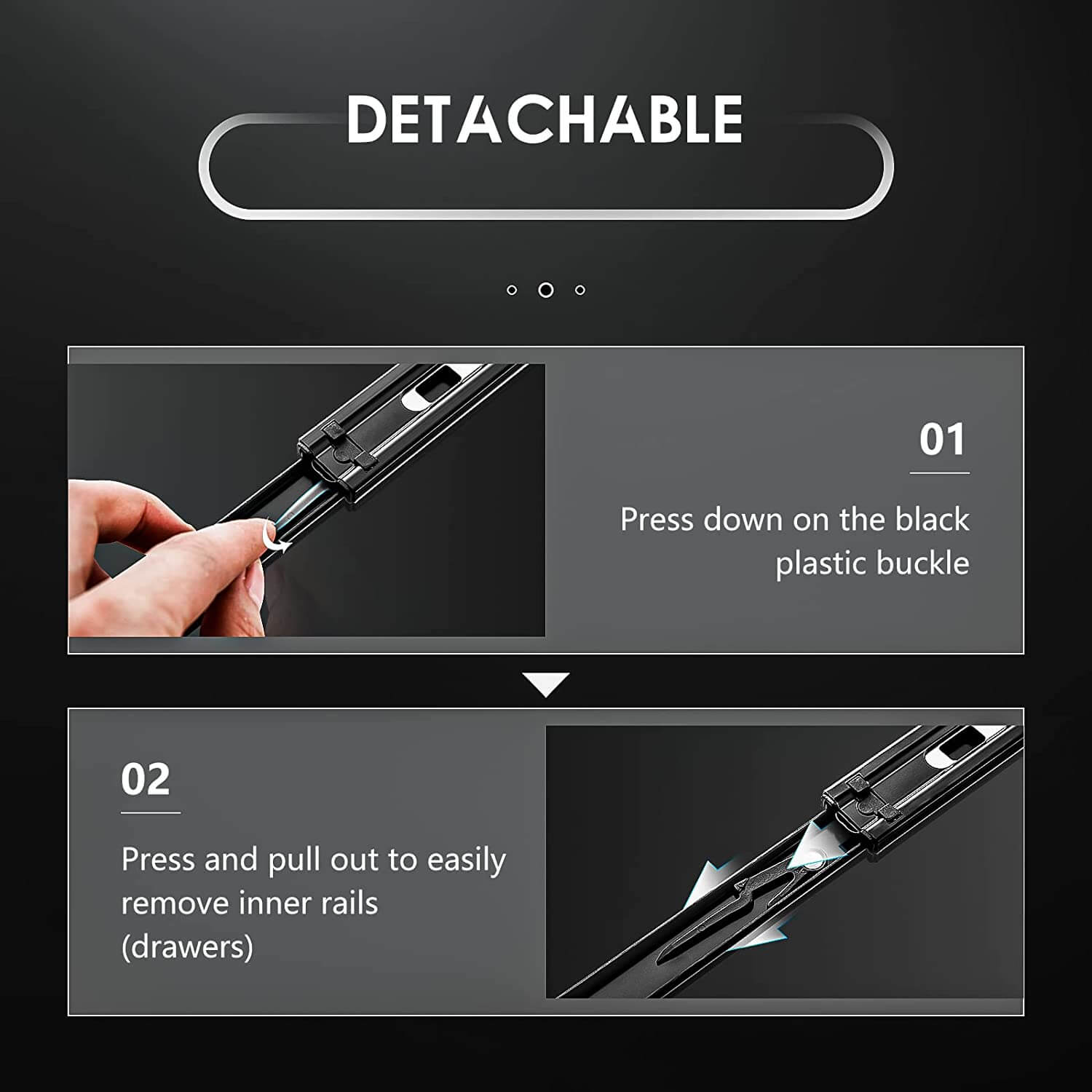

• Full Extension & Easy Installation: 3-fold full-extension design allows complete drawer access. Detachable rails simplify installation.

• Handle Required: Since the slides pull inward, a handle is needed. For handle-free drawers, use push-to-open slides.

• Tested & Long-Lasting: Rated for over 100,000 cycles, with a normal service life of 30+ years.

Installation Guide

• Rail Length: 24 in (for drawers with interior depth ≥ 24 in)

• Full Extension Length: 48 in (3-section design)

• Mounting Clearance: Left 0.5 in, Right 0.5 in

• Package Includes: Mounting screws

• Installation Tip: Push the inner ball to the top, connect to the main rail, then gently push to complete installation. Keep rails parallel on both sides to ensure smooth operation.

Applications

• ATM and vending machines

• Toolbox storage units

• Vehicle modifications and storage

• RV storage

• Under-stairs storage

• Computer server storage

• Industrial machinery

• Civil and office furniture, cabinets

Note: Minimum purchase 3 pairs

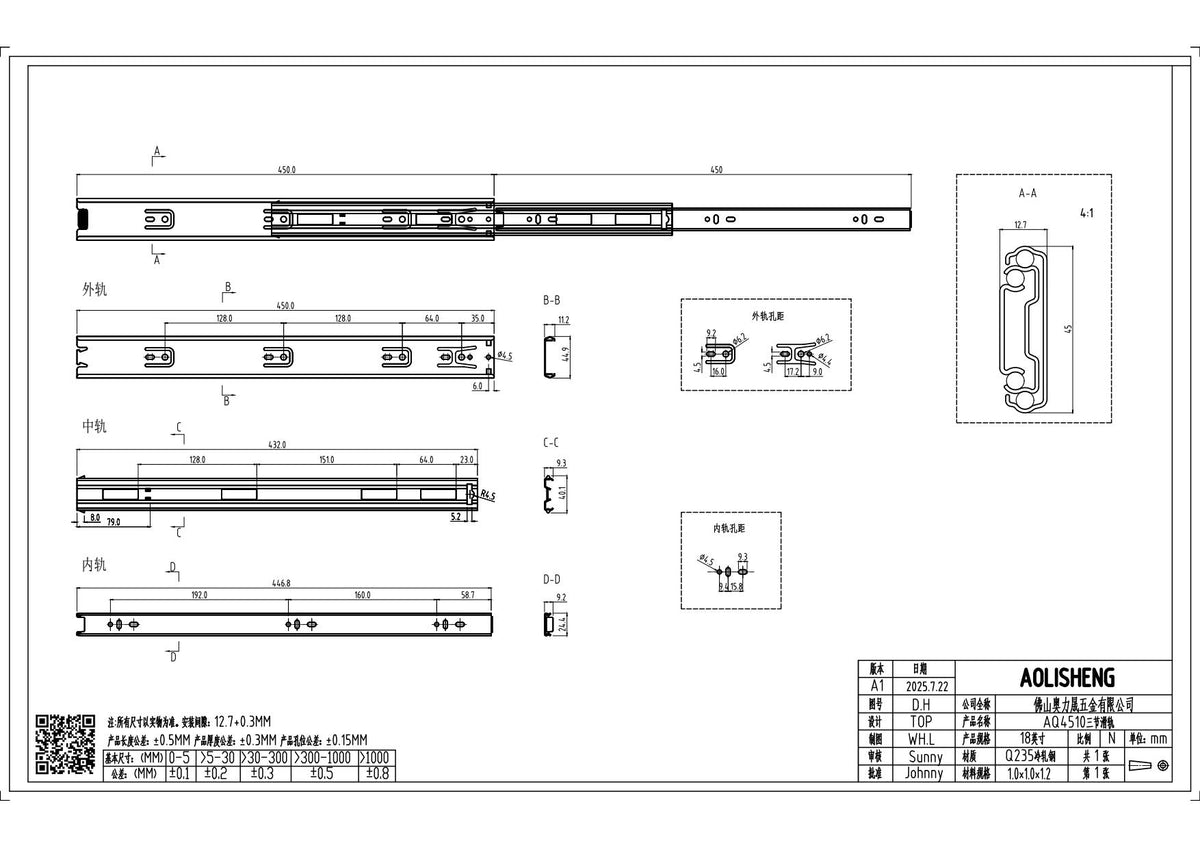

Product Size:

• Width: 45MM
• Thickness: 1.0MM
• Size included: 10 12 14 16 18 20 22 24 inch

Process:

• Material: Q235 cold rolled steel
• Handling: electrophoretic black
• Structure: detachable
• Stainless steel: No
• Function:Conventional

Installation requirements:

• Installation thickness:12.6+0.2mm
• Load capacity: 45KG/100LB
• Installation method: side mount
• Plate thickness: outer slider (1.2mm) / middle slider (1.2mm) / inner slider (1.2mm)

Application scenario:

• Ideal for kitchens, offices, shop fixtures, institutional and residential trades, cabinets, warehouses, containers, industrial drawers, RV chests of drawers and more.

Packing:

• 2pcs/pair (One left and right), with a total of 8 mounting screws at both ends
