AOLISHENG 265lbs Camper Drawer Slides Side Mounted Heavy Duty Drawer Slides With Lock 1 Pair - D2053

Heavy Duty Drawer Slides With Lock

265 lb Load Capacity | Lockable | Full Extension | Detachable | Side Mount

Product Description

The AOLISHENG Heavy Duty Drawer Slides with Lock are engineered for maximum strength, security, and versatility. Designed for industrial, automotive, and residential applications, these slides provide smooth, stable operation while handling heavy loads.

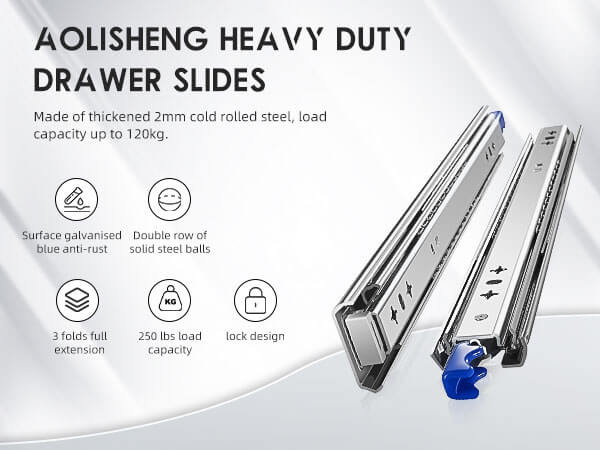

Featuring a full-extension, three-section design, drawers can be completely pulled out for easy access. The slides support up to 265 lb (120 kg) and are crafted from 2.0mm thick Q235 cold-rolled steel, ensuring exceptional durability without bending or warping.

The dual-side lock mechanism allows drawers to be locked when fully closed or fully opened, preventing accidental sliding and enhancing security—functionality not found in standard slides.

Key Features

• High Load Capacity: Supports up to 265 lb (120 kg) for heavy-duty storage needs.

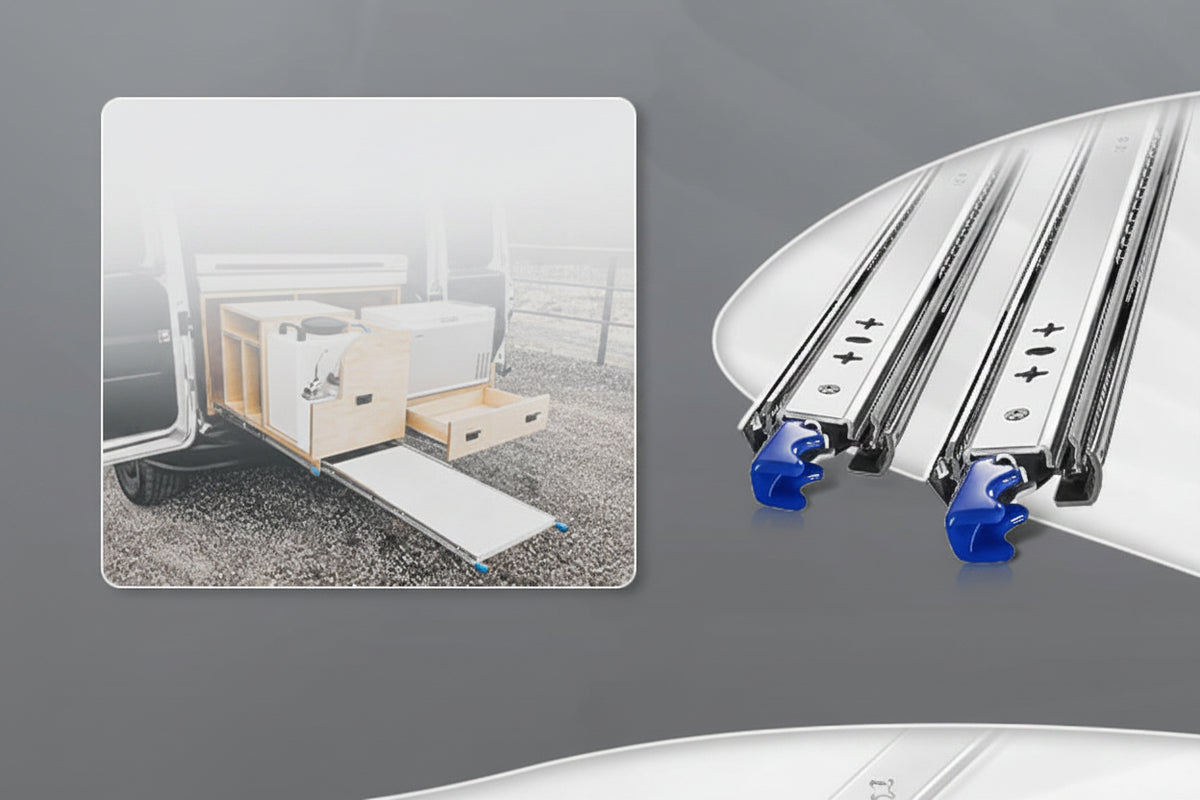

• Lockable Design: Press the blue handles on both sides to lock/unlock. Secure when fully open or closed.

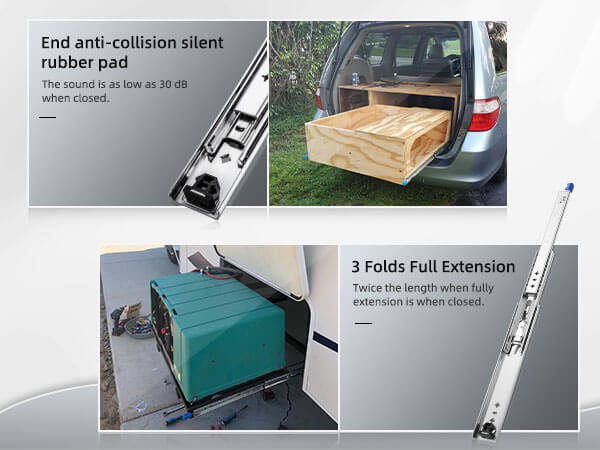

• Full Extension & Detachable: Three-section design allows complete drawer access and easy installation.

• Durable Construction: Made from 2.0mm Q235 cold-rolled steel, built to withstand heavy loads and repeated use.

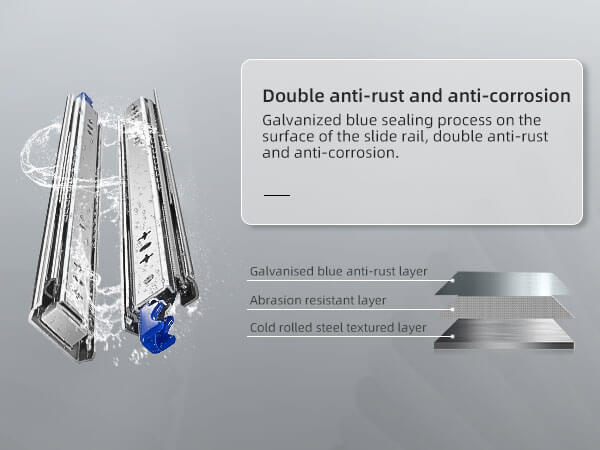

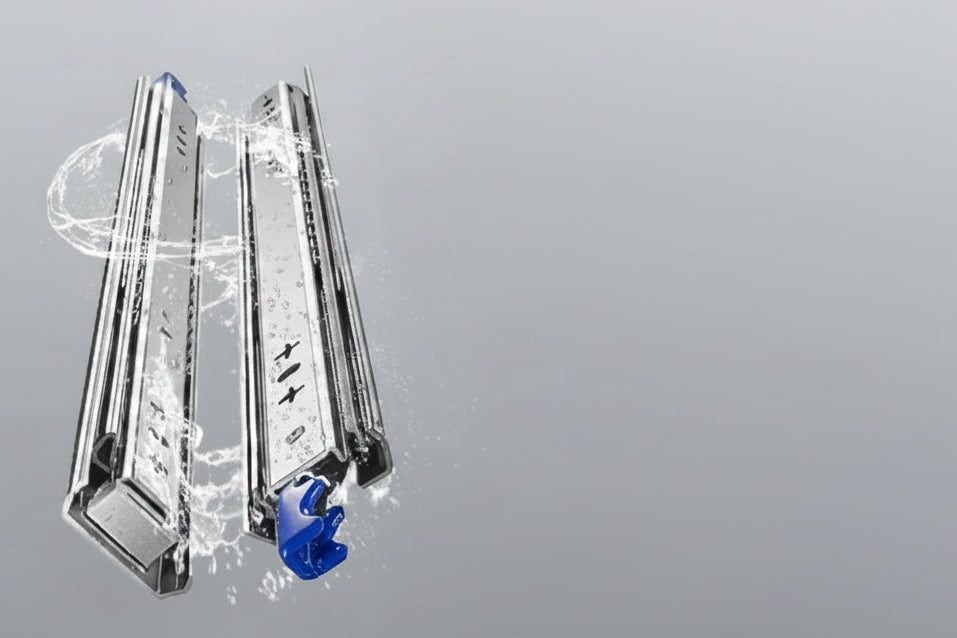

• Rust-Resistant: Galvanized blue sealing treatment prevents corrosion and oxidation, suitable for humid environments.

• DIY-Friendly Installation: Supplied with detailed installation video tutorial for quick and easy setup.

Installation Guide

• Ensure Parallel Alignment: Rails must remain parallel; misalignment affects operation.

• Mounting Screws & Brackets: Not included; M5 screws can be purchased separately according to your installation scenario.

• Minimum Drawer Depth: Choose slide length according to drawer depth; length ≤ drawer length.

Applications

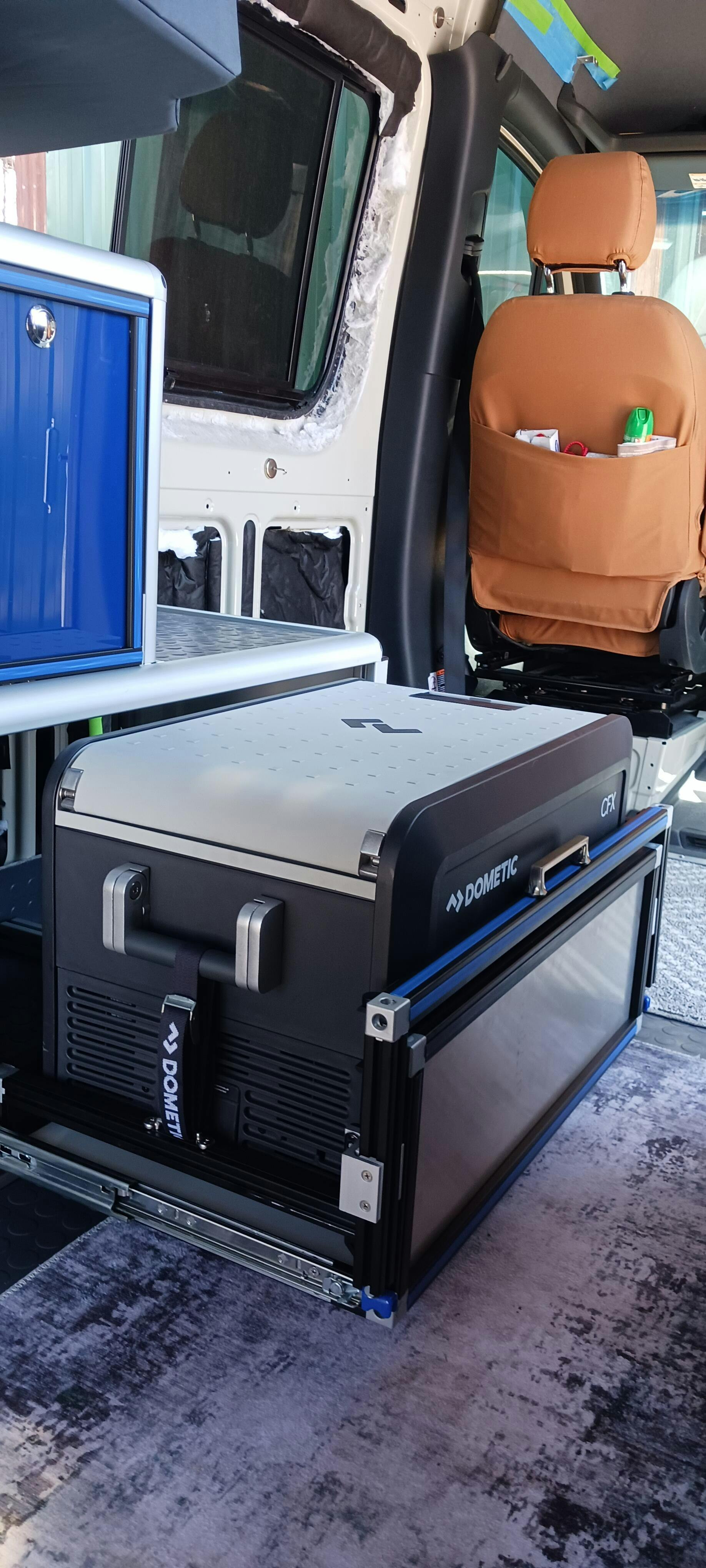

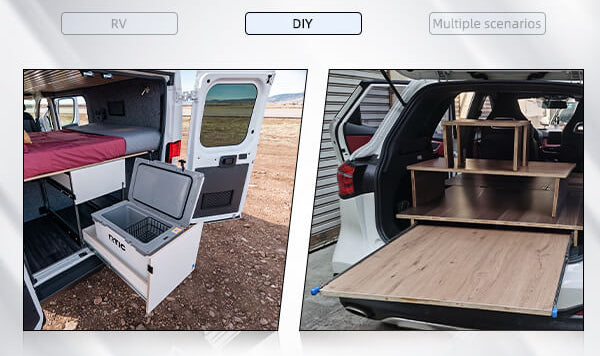

• Car modification and automotive storage

• Industrial machinery and equipment

• Shelf toolboxes and heavy-duty cabinets

• Residential heavy-duty drawers

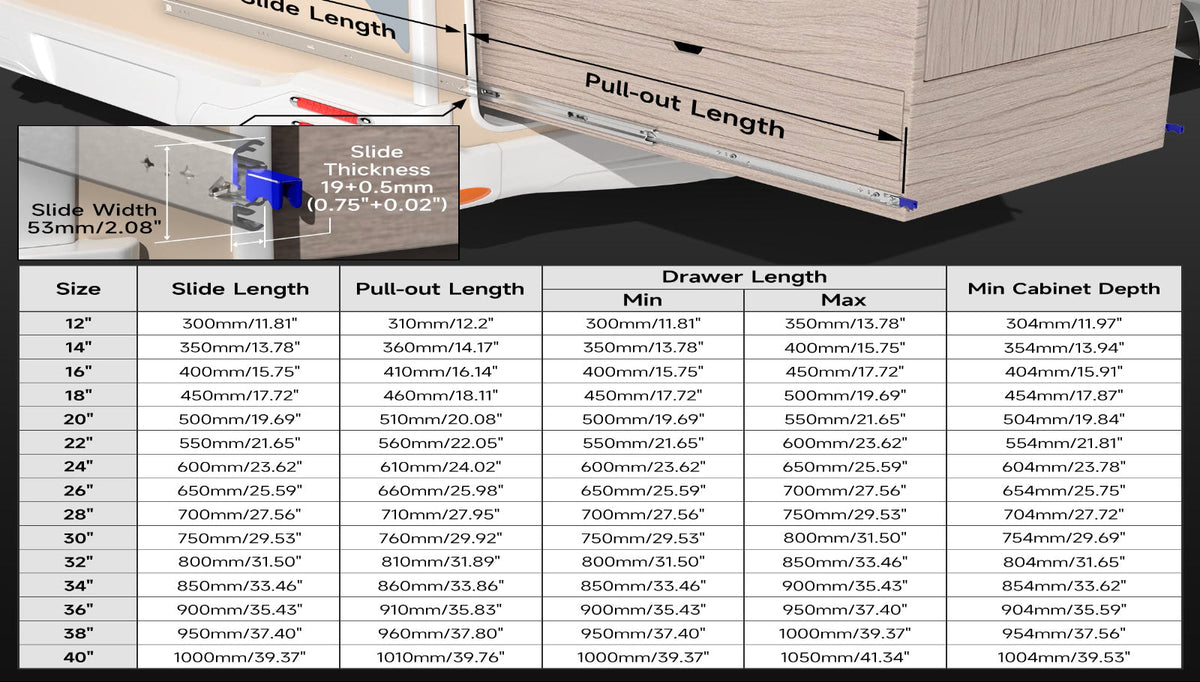

Product Dimensions:

• Width: 53MM
• Thickness: 2.0MM
• Include Size: 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40inch

Craft：

• Material: Q235 cold rolled steel
• Function: with lock
• Deal With: Surface electroplating blue zinc
• Structure：Detachable

Installation Requirements：

• Installation thickness: 19+0.5mm
• Load capacity: 120KG/265LB
• Installation method: side mount
• Plate Thickness: Outer Slider (2.0mm) / Middle Slider (2.0mm) / Inner Slider (2.0mm)

Application Scenario：

shelves, cabinets, industrial drawers, RVs, trucks, woodworking, vending machines, etc.
