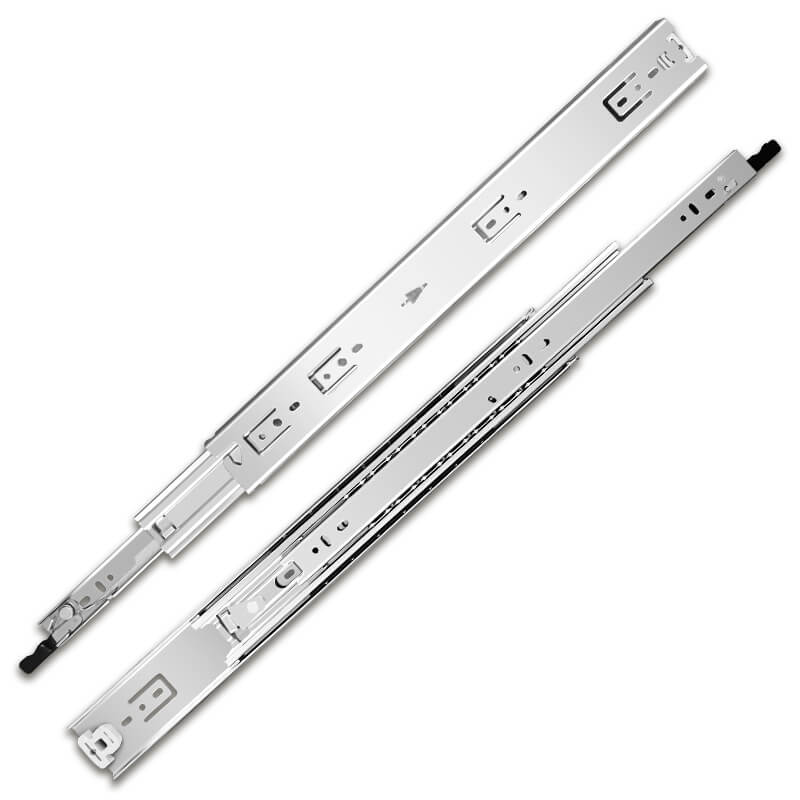

150 lb Capacity Side Mount Tool Box Locking 3-fold extension slide Rail

• Pull the lock handle to unlock and lock, detachable.
• Ball bearing drawer slides glide smoothly
• 3-fold fully unfolded and detachable, easy to use
• Ball bearing drawer slides pull smoothly and last up to 30 years
• Surface galvanized blue sealing process, double-layer anti-rust
• The carrying capacity is three times that of ordinary slide rails, and the maximum carrying capacity is 150lb

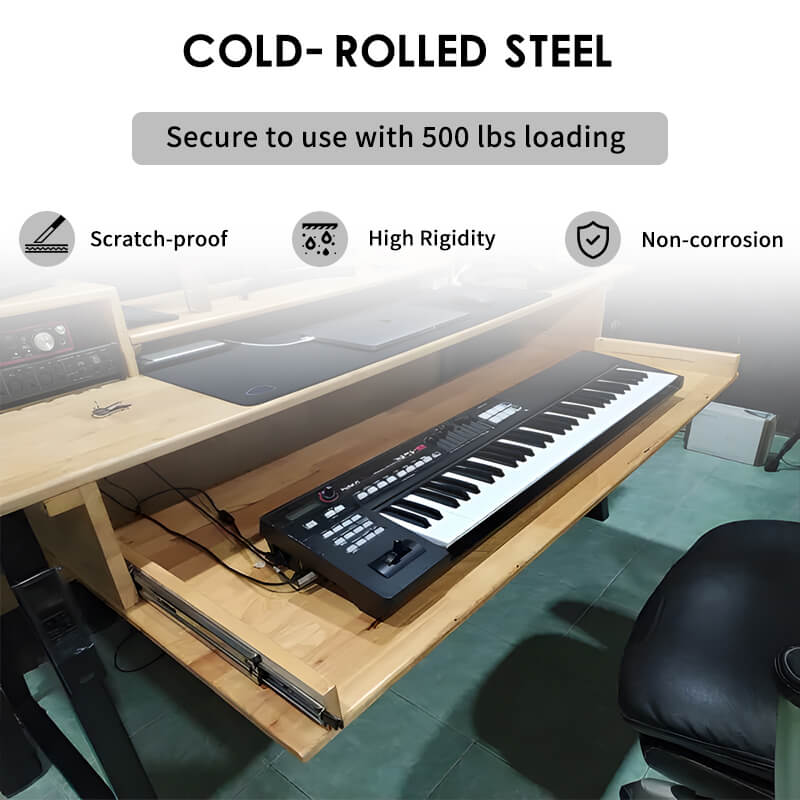

• Made of thickened Q235 high-strength cold-rolled steel, it can support heavy loads and store without deformation
• There is a limited rubber pad at the bottom, made of ABS plastic, with good wear resistance and good crash resistance

Rail Notes:

• When installing, be sure to keep the slide rails on both sides parallel. Slanted or out of parallel will affect normal use.
• Mounting screws and brackets are not included, and you can purchase different M4 screws according to specific installation scenarios.

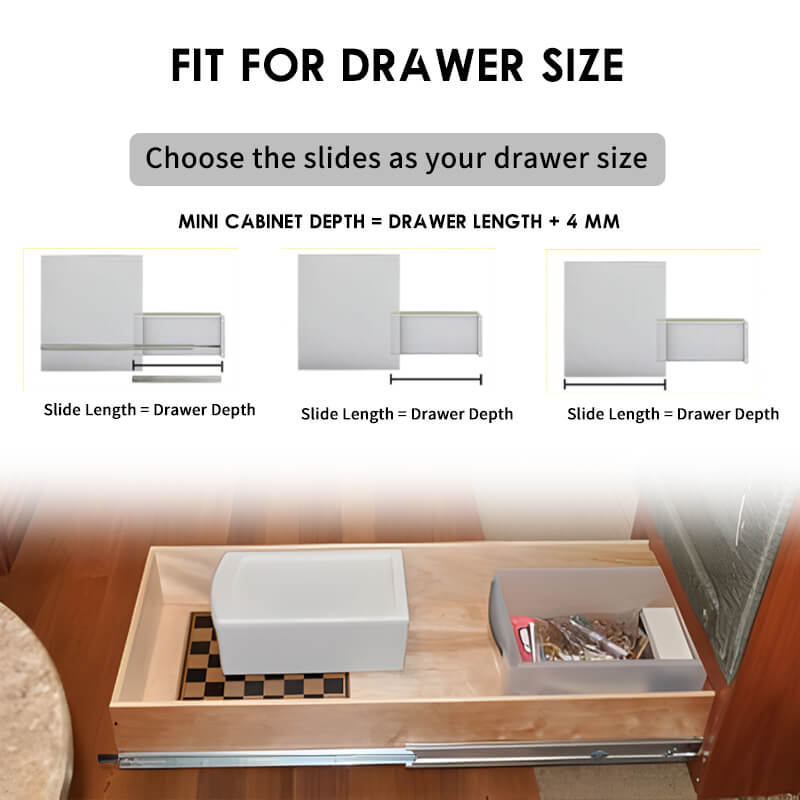

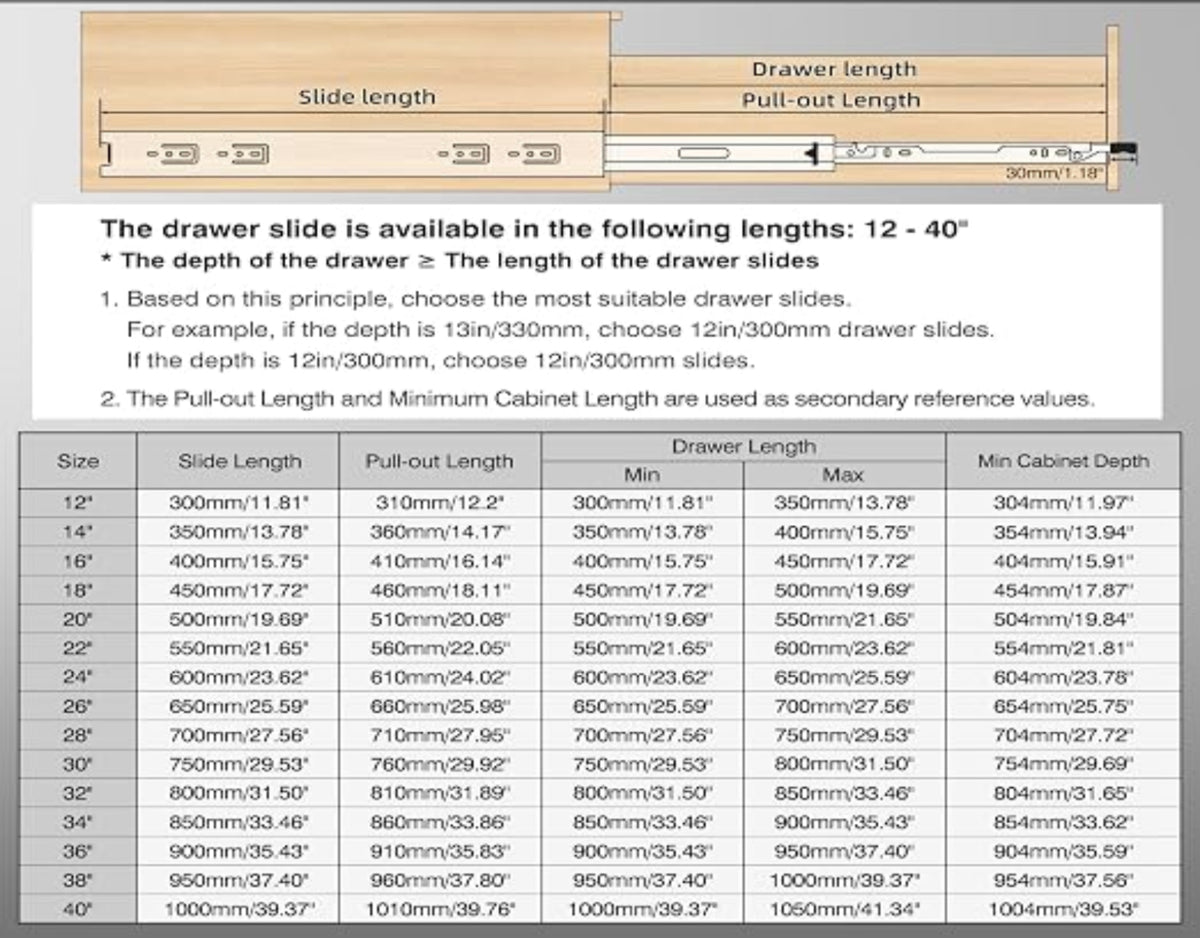

• You can choose the size of the rails according to the depth of the drawer. The length of the rail should be less than or equal to the length of the drawer.

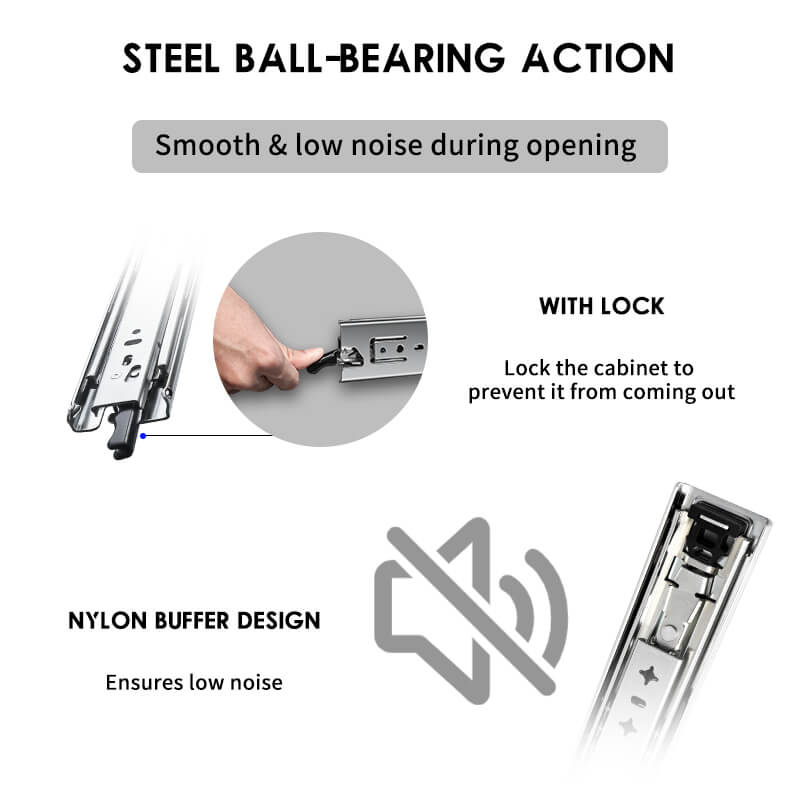

• With lock design, press the lock head, the drawer is locked when it is fully opened or closed, preventing accidental sliding out

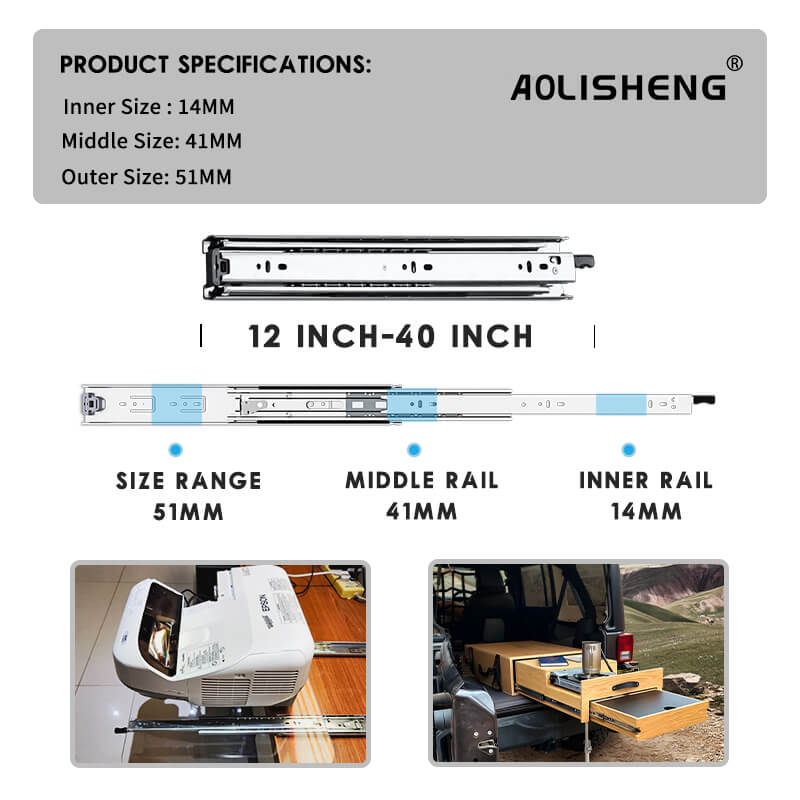

Product Dimensions:

• Width: 51MM
• Thickness: 1.5MM
• Include Size: 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40inch

Craft：

• Material: Q235 cold rolled steel
• Function: with lock
• Deal With: Surface electroplating blue zinc
• Structure：Detachable

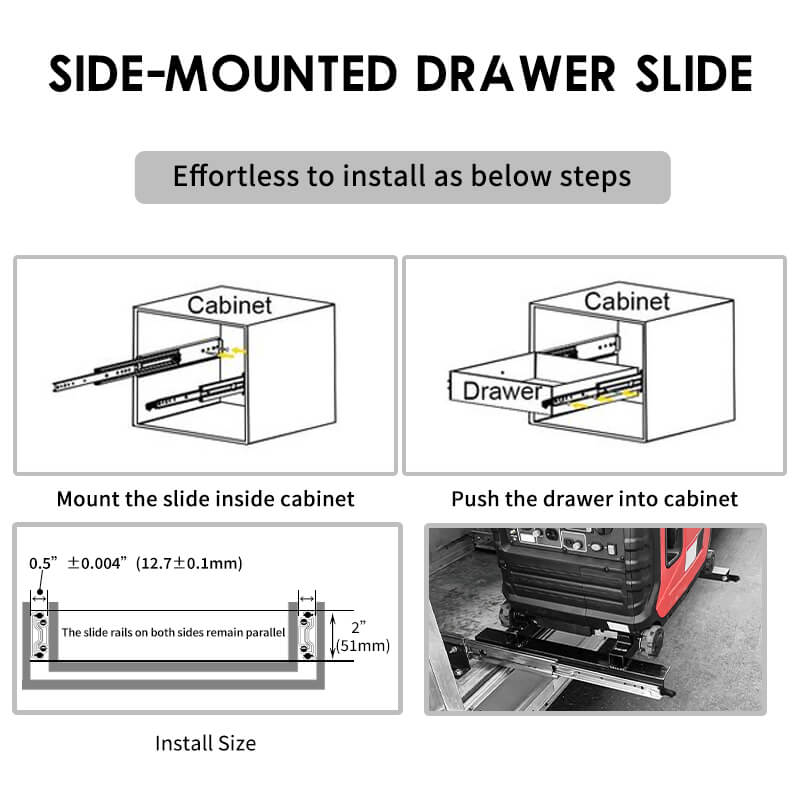

Installation Requirements：

• Installation thickness: 13±0.5mm
• Load capacity: 68KG/150LB
• Installation method: side mount
• Plate Thickness: 1.5MM

Application Scenario：

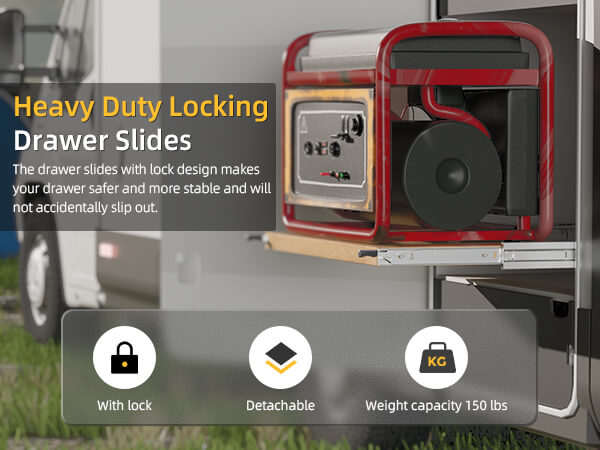

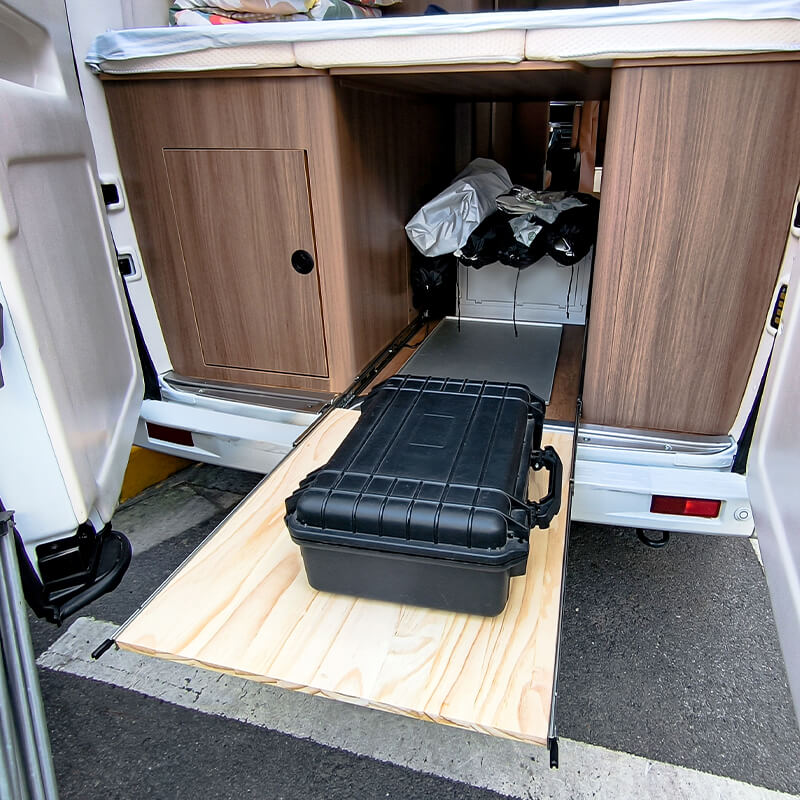

Various cabinets for home use can also be used for industrial drawers, RVs, trucks, woodworking, shelves, cabinets, vending machines and more.
