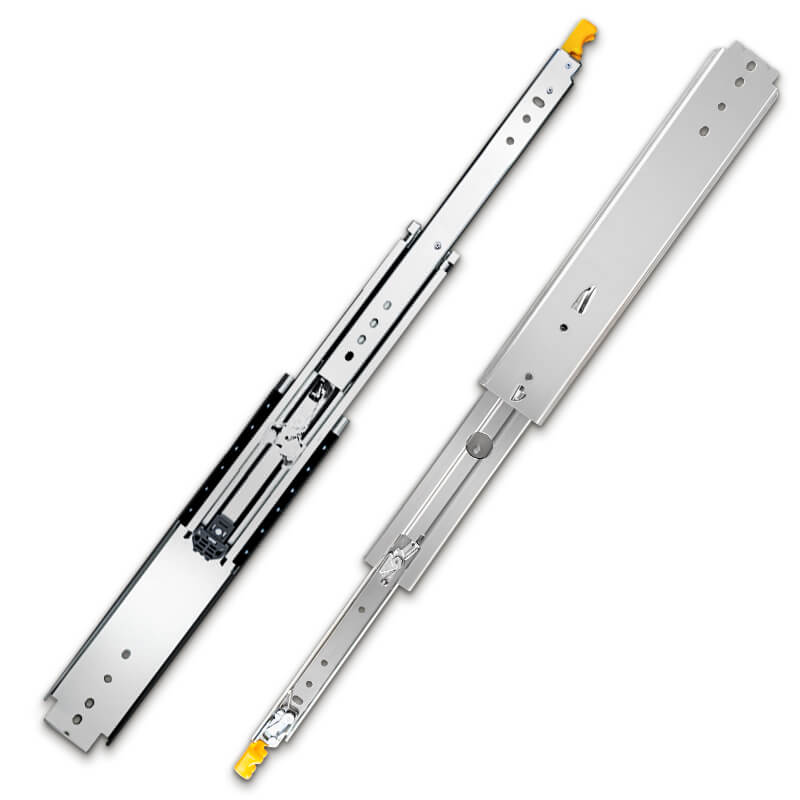

Heavy Duty Drawer Slides With Lock

500 lb Load Capacity | Lockable | Full Extension | Side Mount | Durable & High Strength

Product Description

The AOLISHENG Heavy Duty Lockable Drawer Slides are designed for demanding applications where safety, strength, and smooth operation are essential. Ideal for car modifications, mechanical equipment storage, toolboxes, shelves, cabinets, industrial drawers, RVs, trucks, vending machines, and ATM drawers.

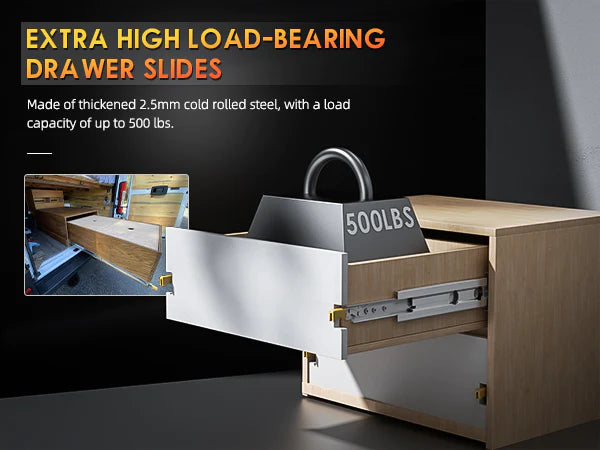

Made from 2.5mm thick Q235 cold-rolled steel, these slides provide exceptional strength and durability, supporting up to 500 lb (227 kg). Tested for over 50,000 open/close cycles, they ensure long-lasting performance even under heavy loads.

The surface is treated with a galvanized blue sealing process, isolating the slides from air and water exposure for superior corrosion and oxidation resistance.

Key Features

• High Load Capacity: Supports up to 500 lb (227 kg) for heavy-duty and industrial applications.

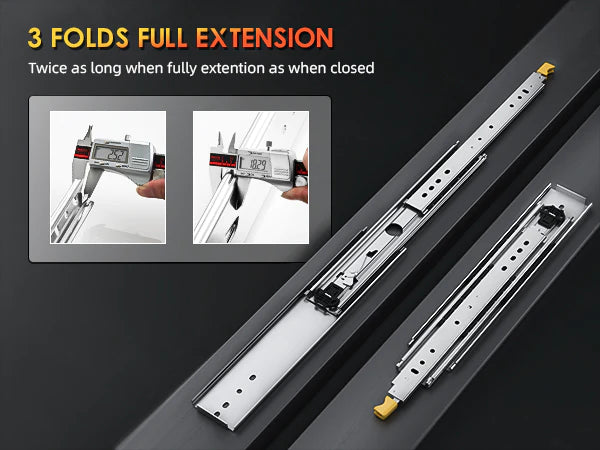

• Full Extension Design: Three-section slides allow full access to drawer contents.

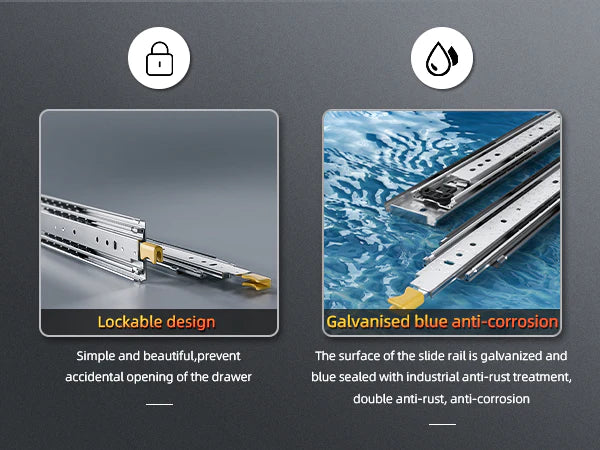

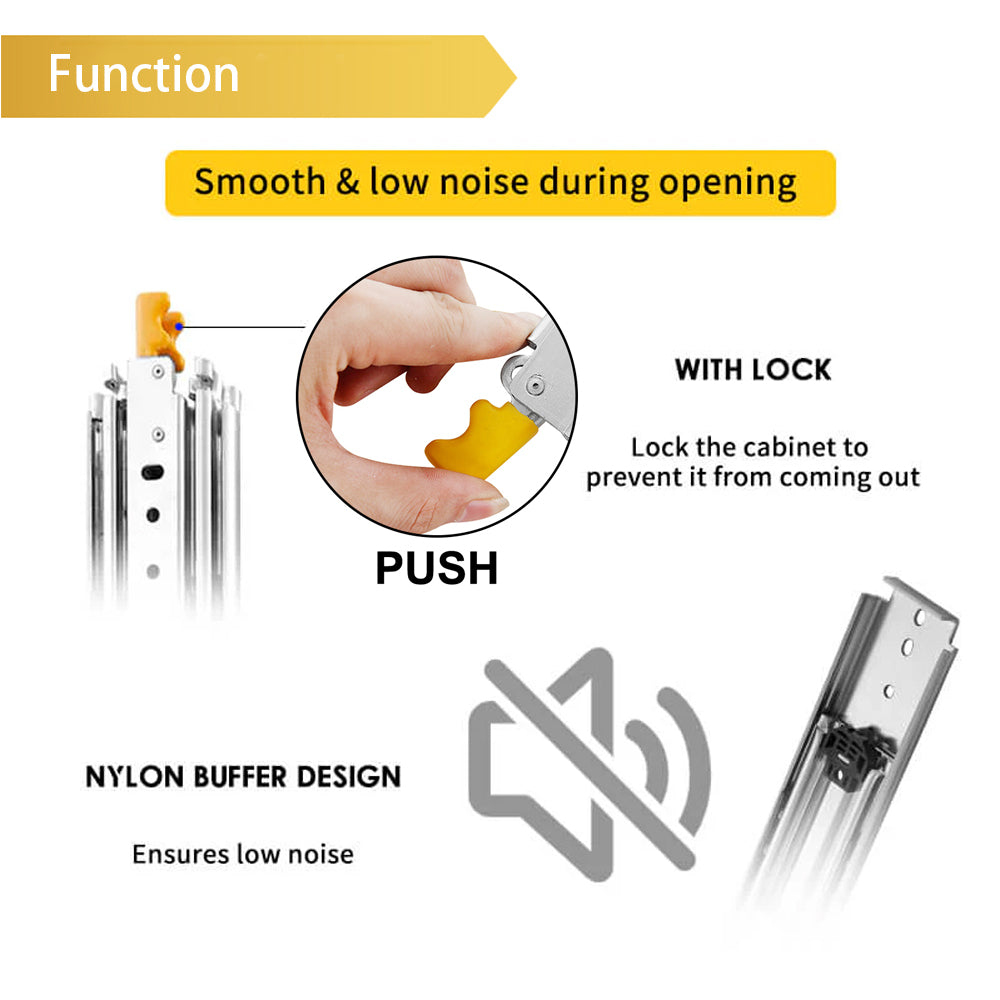

• Locking Mechanism: Press the yellow handles on both sides to lock/unlock the drawers. Locking works when the drawer is fully open or fully closed to prevent sliding, providing extra safety and stability.

• Durable & Rust-Resistant: Galvanized blue sealing treatment enhances anti-corrosion and anti-oxidation.

• DIY-Friendly Installation: Includes a detailed installation video tutorial for quick and easy setup.

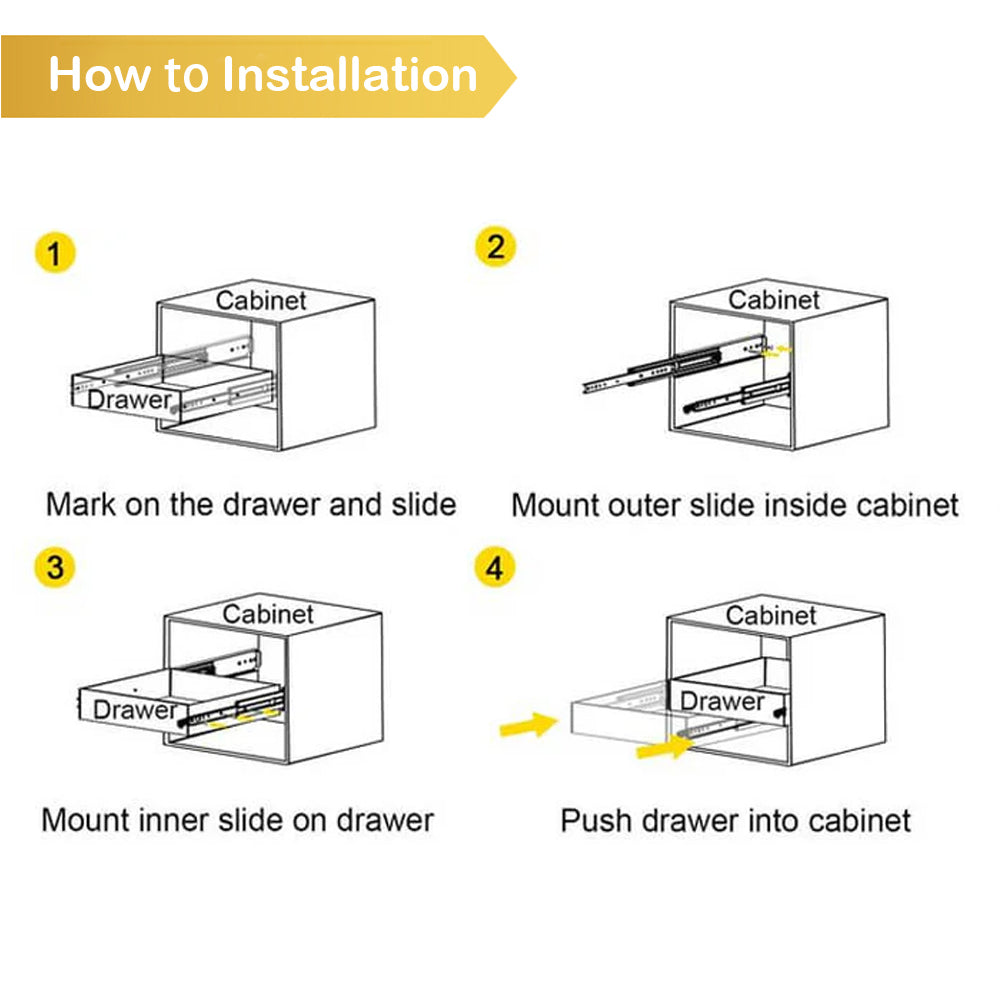

Installation Guide

• Maintain Parallel Alignment: Keep both slides parallel during installation to ensure smooth operation.

• Mounting Screws: Not included; purchase M6 screws based on your installation scenario.

• Safety Notice: Slides cannot be disassembled to ensure user safety. Locking mechanism only works when fully closed or fully opened.

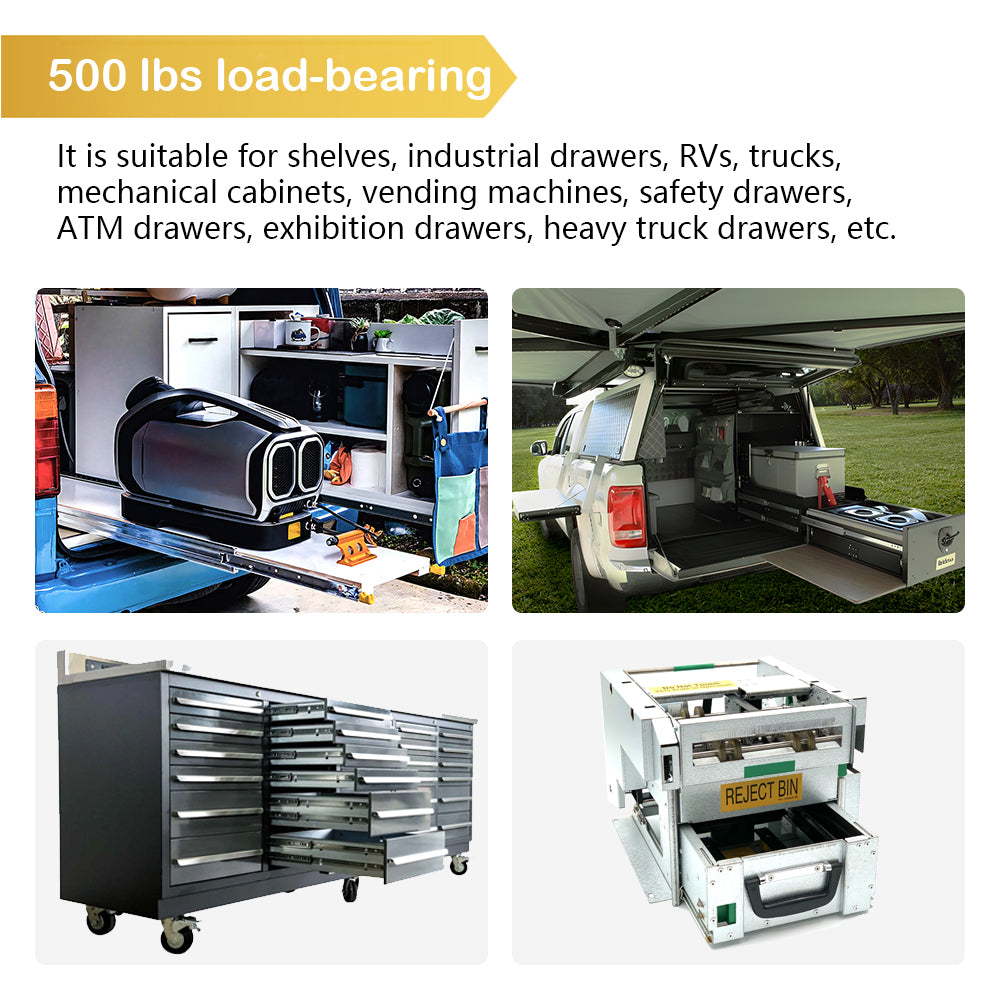

Applications

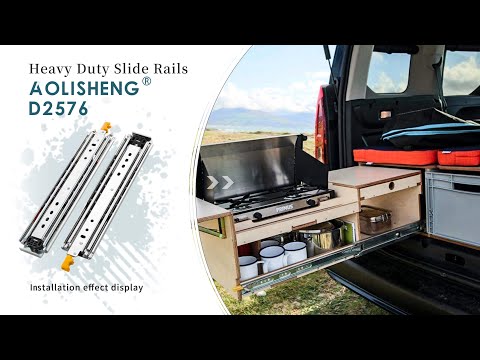

• Car modifications and vehicle storage

• Industrial equipment and mechanical drawers

• Heavy-duty tool cabinets and shelving

• RVs, trucks

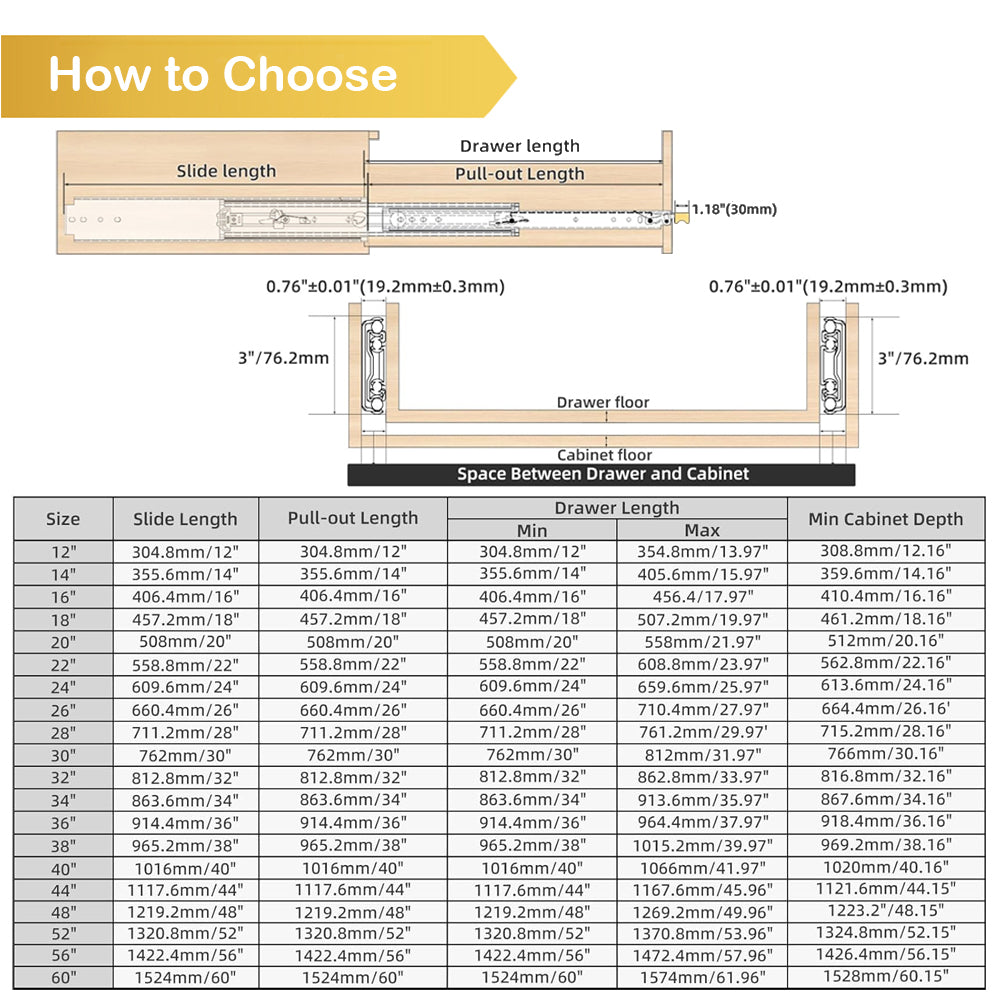

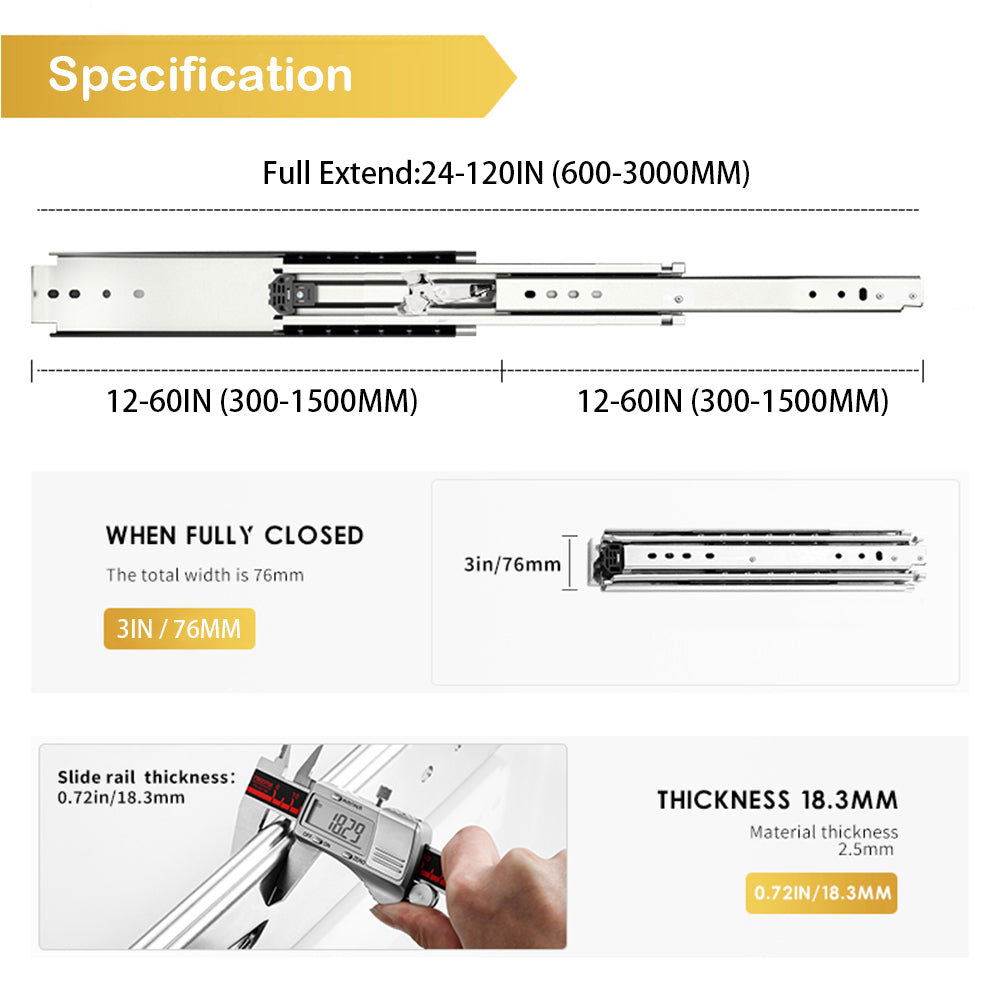

Product Dimensions:

• Width: 76MM
• Thickness: 2.5MM
• Include Size: 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 44 48 52 56 60 inch

Craft：

• Function: with lock

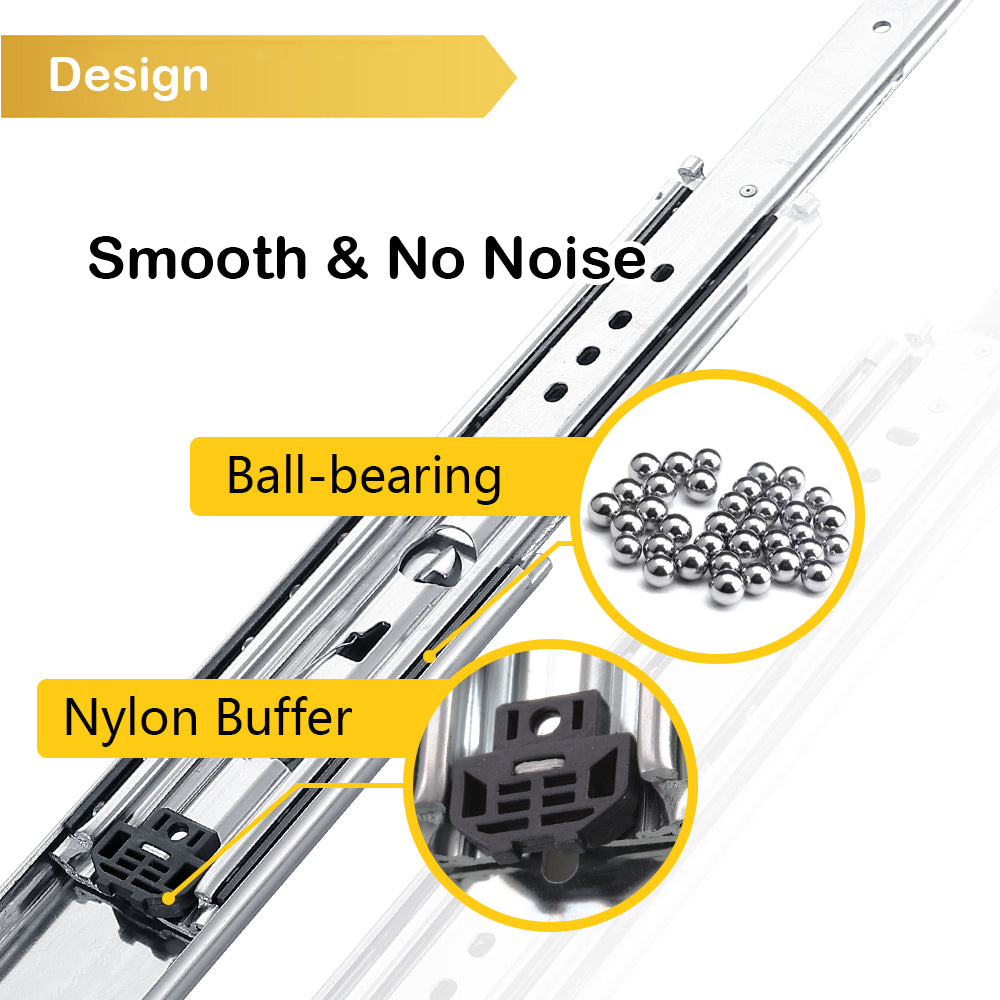

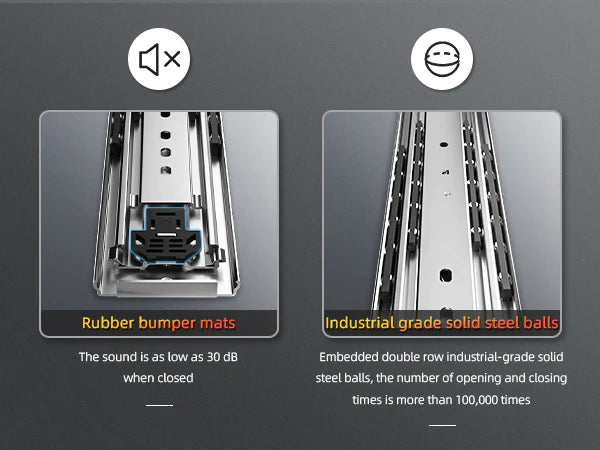

• Bearing：Carbon steel solid steel ball
• Material: Q235 cold rolled steel
• Deal With: surface electroplating blue zinc

Installation Requirements：

• Installation thickness: 19.2+0.5mm
• Load capacity: 220KG/500LB
• Installation method: side mount
• Plate Thickness: Outer Slider (2.5mm) / Middle Slider (2.5mm) / Inner Slider (2.5mm)

Application Scenario：

Shelves, cabinets, industrial drawers, RVs, trucks, woodworking, vending machines, etc.
