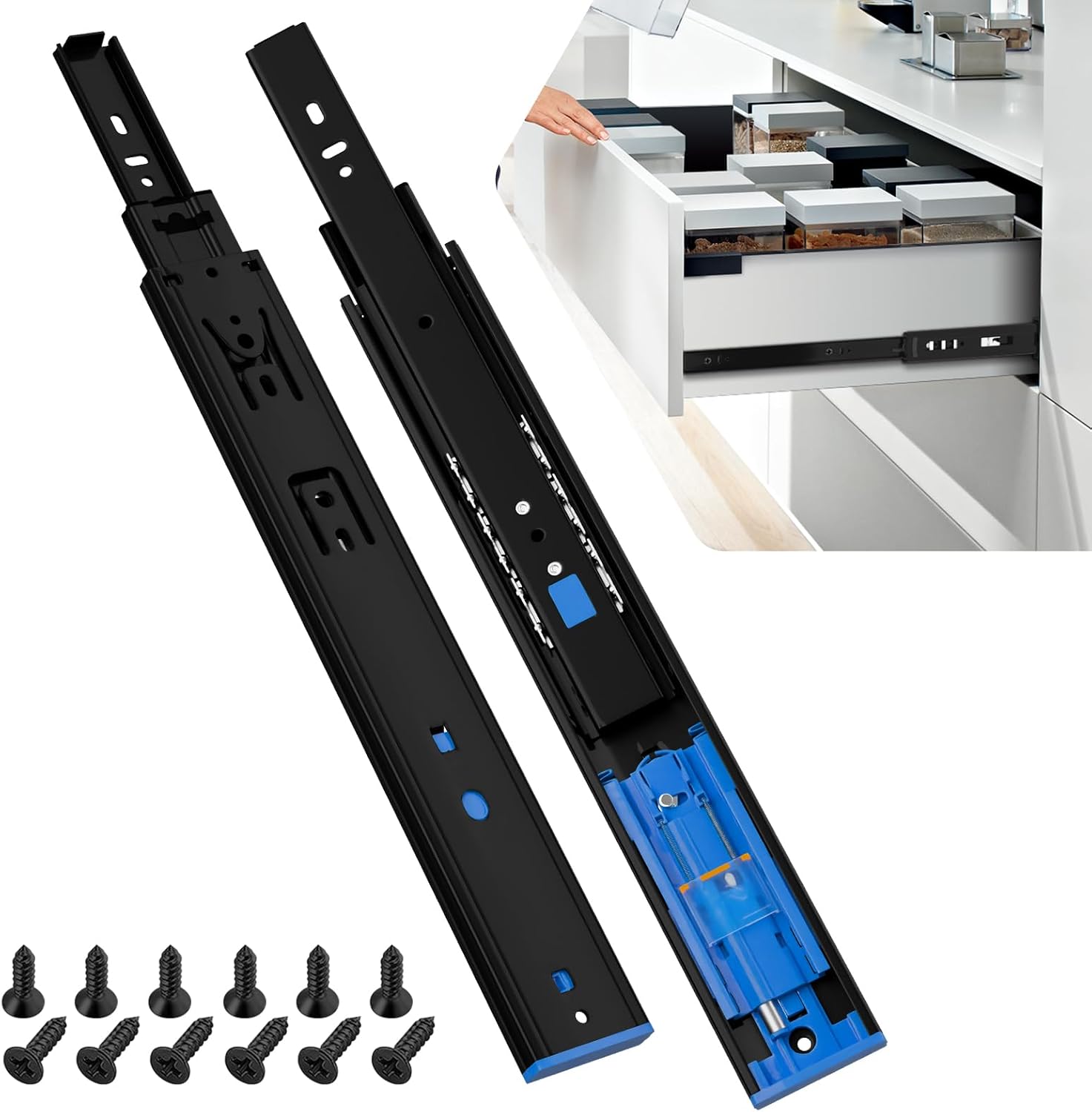

AOLISHENG 100lb Soft Close and Push to Open Drawer Slides - 1 Pair (P4510)

Push to Open and Soft Close Dual Function Drawer Slide

100 lb Load Capacity | Push to Open  | Soft Close | 3 - Fold  | Side Mount

Product Description

The AOLISHENG  Push-to-Open Soft-Close Drawer Slides are designed for handle-less cabinetry where clean aesthetics, quiet operation, and everyday convenience are essential.

Made from 1.2mm thick Q235 cold-rolled steel, these slides provide exceptional strength and durability, supporting up to 100 lb (45 kg). Tested for over 50,000 open/close cycles, they ensure quiet, consistent performance through years of daily use.

The surface is treated with electrophoretic black, isolating the slides from air and water exposure for superior corrosion and oxidation resistance, particularly important in kitchens and bathrooms where humidity is constant.

Key Features

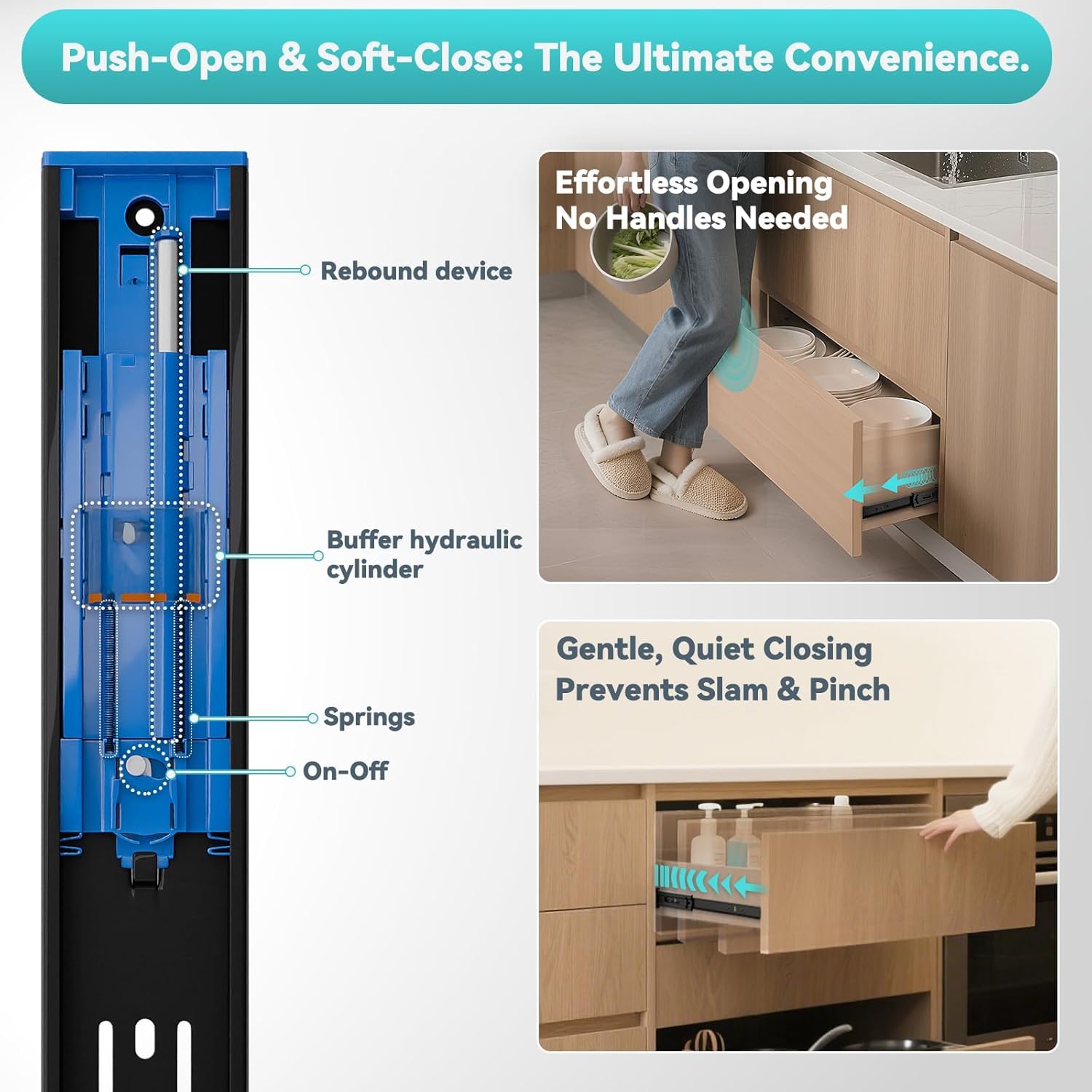

• Push-to-Open & Soft-Close: A light press on the drawer front releases it smoothly with no handle required, while a built-in hydraulic damper draws it closed gently and silently — safe, quiet, and ideal for handle-less cabinetry.

• Full Extension & Removable: Three-section slides extend the drawer clear of the cabinet for access to stored items, and a black release clip at the rear lets you lift the drawer out for easy installation and cleaning.

• DIY-Friendly Installation: Slide length must be equal to or less than the drawer depth. Push the inner ball bearing to the top of the rail first, then connect and push gently to complete.

• Durable & Rust-Resistant: Electrophoretic black coating isolates the steel from air and moisture, enhancing anti-corrosion and anti-oxidation performance in kitchens and bathrooms.

Installation Guide

• Maintain Parallel Alignment: Keep both slides parallel during installation to ensure smooth operation.

• Mounting Screws: Not included.

Applications

• Kitchen cabinets

• Bathroom vanities

• Wardrobes

• Bedroom furniture

• Office drawers

Product Size:

• Item Dimensions LxWxH 12.8 x 3.35 x 2.56 inches
• Thickness: 1.2MM

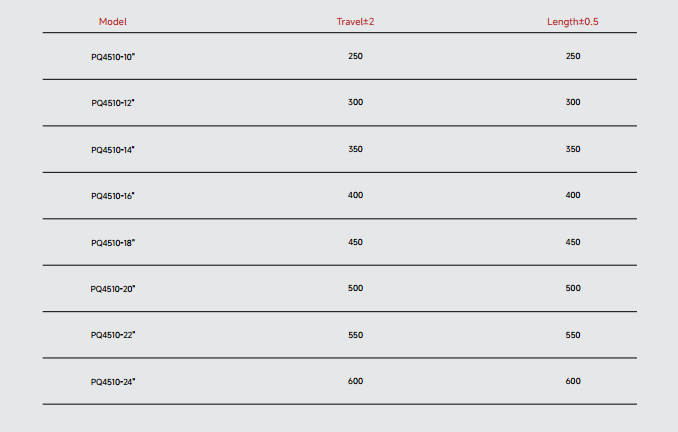

• Size included: 10 12 14 16 18 20 22 24 inch

Process:

• Material: Q235 cold rolled steel
• Function:soft close with lock
• Handling: blue zinc plating on the surface
• Structure: detachable

Installation requirements:

• Installation thickness:5MM
• Load capacity:35KG/78LBS
• Installation method: Under Mount

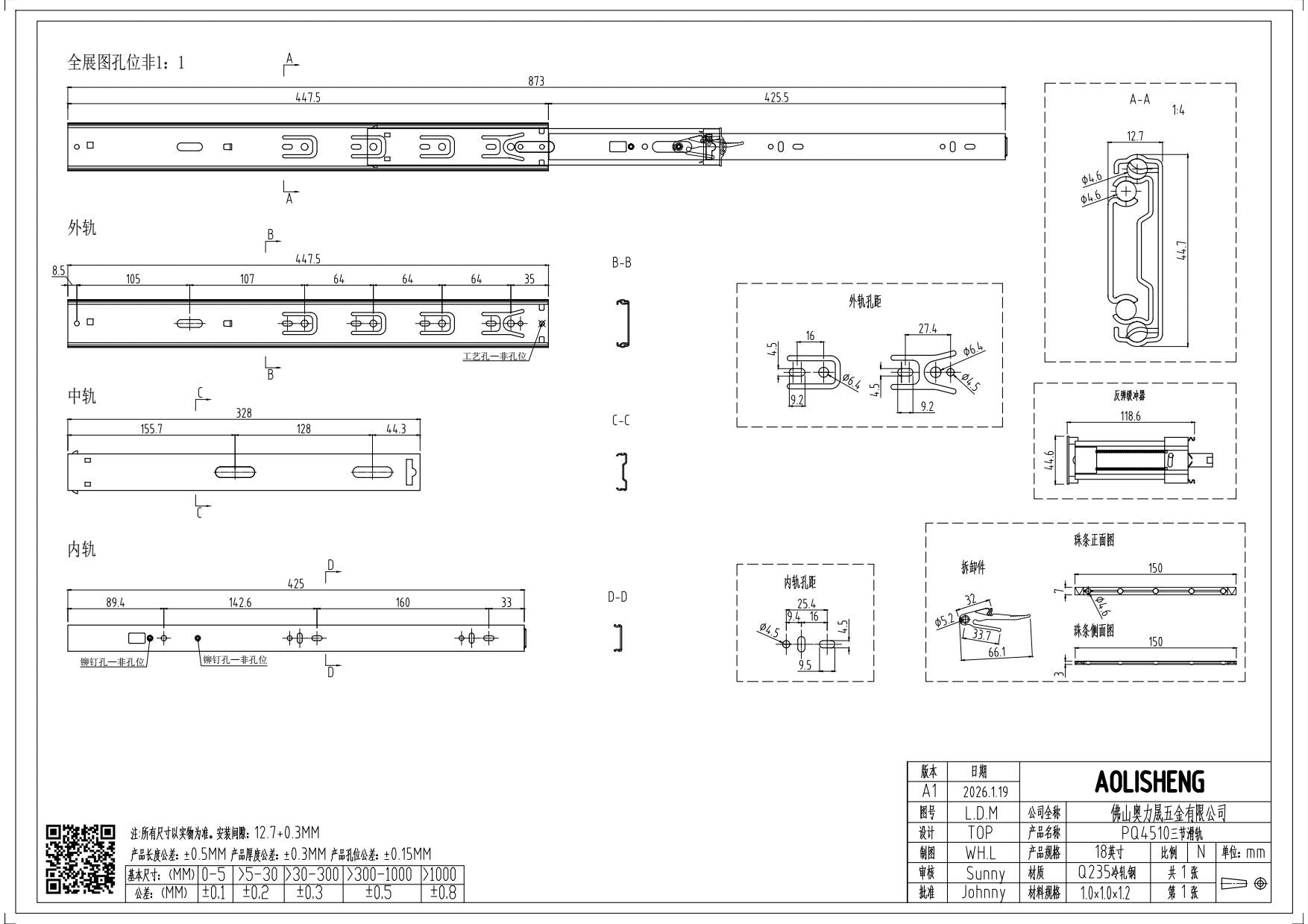

• Plate thickness: Outer Slider (1.8mm) / Middle Slider (1.5mm) / Inner Slider (1.0mm)

Application scenario:

• Ideal for kitchens, offices, shop fixtures, institutional and residential trades, cabinets, warehouses, containers, industrial drawers, RV chests of drawers and more.

Packing:

• 2pcs/pair (One left and right), mounting screws
