AOLISHENG 100lbs Push to Open Full Extension Side Mount Drawer Slides 3 Pair - F1245

push to open drawer slides

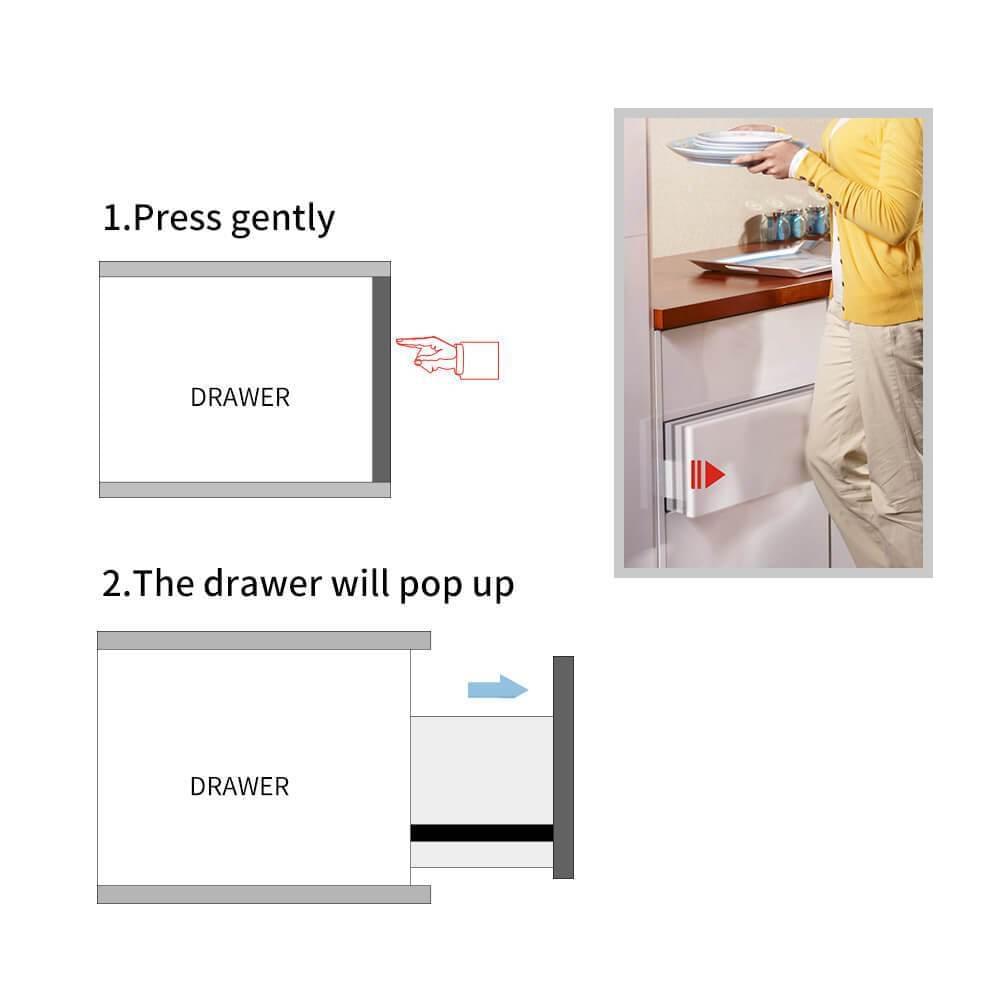

100-pound push to open drawer slides rail adopts a new hydraulic rebounder press operation structure, saying goodbye to the traditional handle drawer. The drawer opens with a light push. Can be used to hide drawers.

Discover more about the Residential Drawer Slides

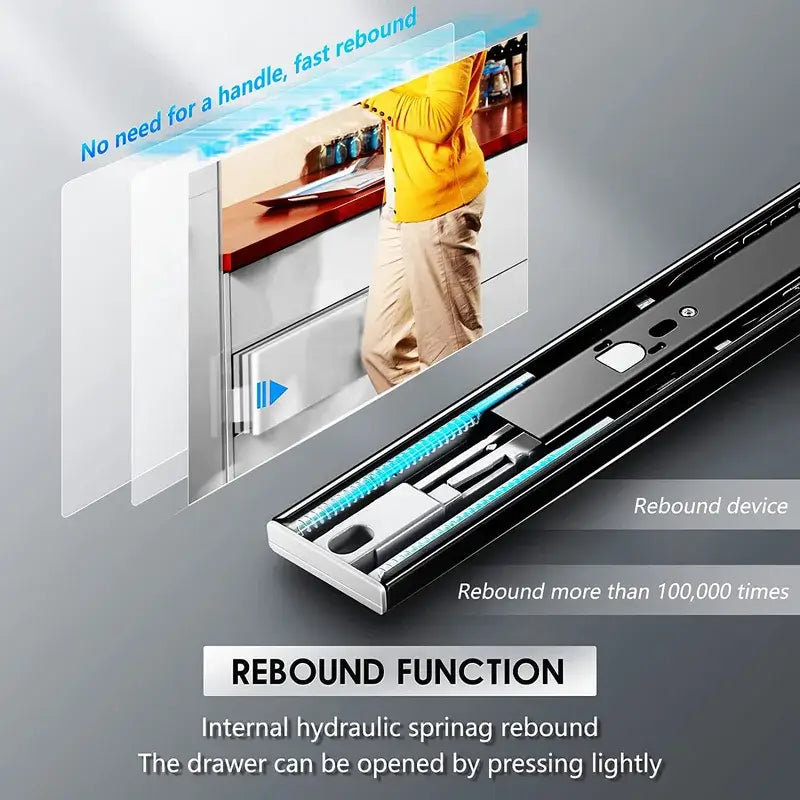

• New hydraulic rebounder to open the drawer with a light push
• Push open drawer slides can hold 100 lbs, 40 lbs more than regular slides.

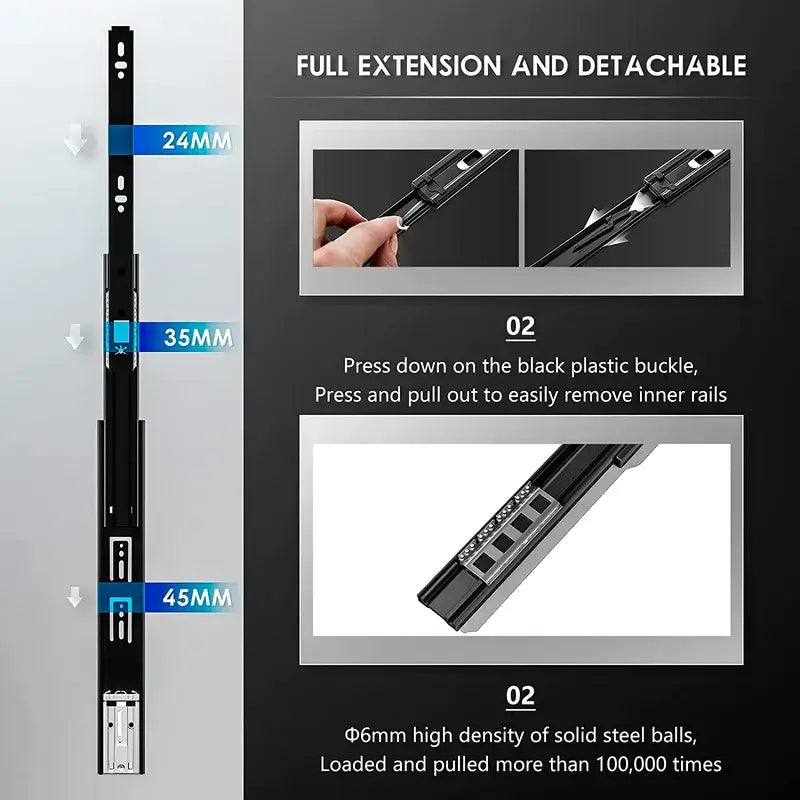

• Fully extended and detachable slide rails for easy installation and storage

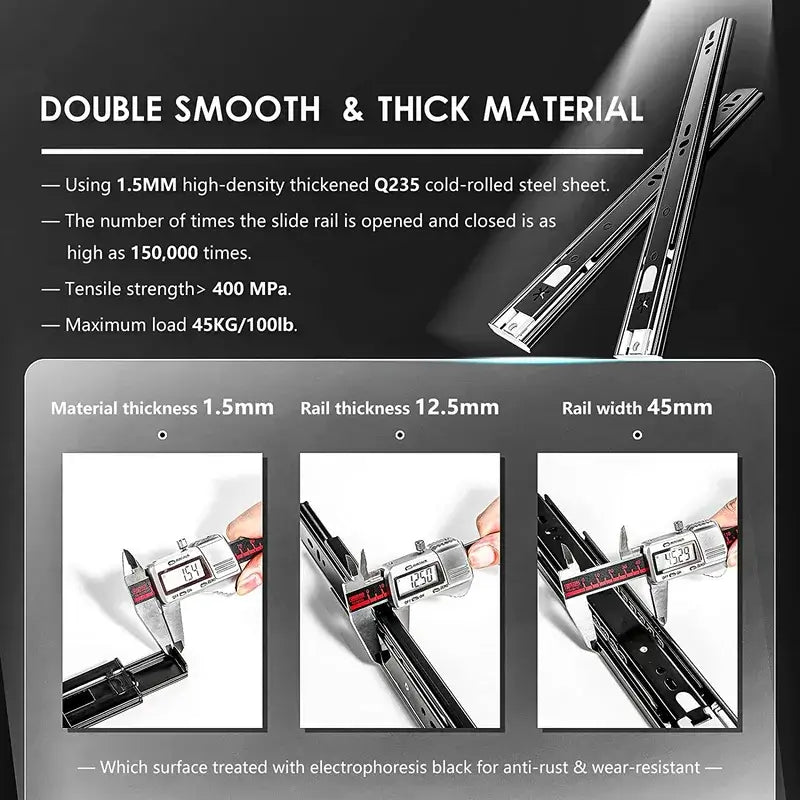

• The drawer slides are made of 1.2mm high quality cold rolled steel
• After testing, the number of opening and closing of the slide rail is as high as 150,000 times, and the service life is 30 years
• Aolisheng slide rail has excellent anti-rust and mute function
• Two rows of solid steel balls inside for smoother pulling

Installation Guide:

• Rail Length: 24" (600mm), for drawers with an interior depth ≥ 24". Three full extension lengths: 48" (1200mm).
• Left Mounting Clearance: 0.5" (12.5mm), Right Mounting Clearance: 0.5" (12.5mm).
• The product package contains a total of 8 mounting screws at both ends.
• When installing, please push the inner ball to the top of the slide rail first, then connect with the slide rail, and finally push it lightly to complete the installation.
• Be sure to keep the slide rails on both sides parallel. Inclined or non-parallel will affect the normal use.

Note:

• Minimum purchase: 3 pairs

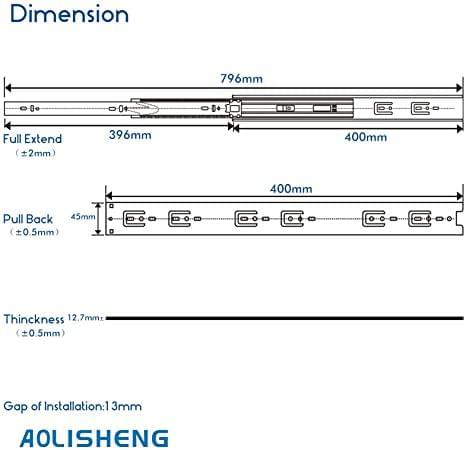

Product Size:

• Width: 45MM
• Thickness: 1.2MM
• Size included: 12 14 16 18 20 22 24 inch

Process:

• Function: push open
• Material: Q235 cold rolled steel
• Handling: electrophoretic black
• Structure: detachable

Installation requirements:

• Installation thickness:12.6+0.2mm

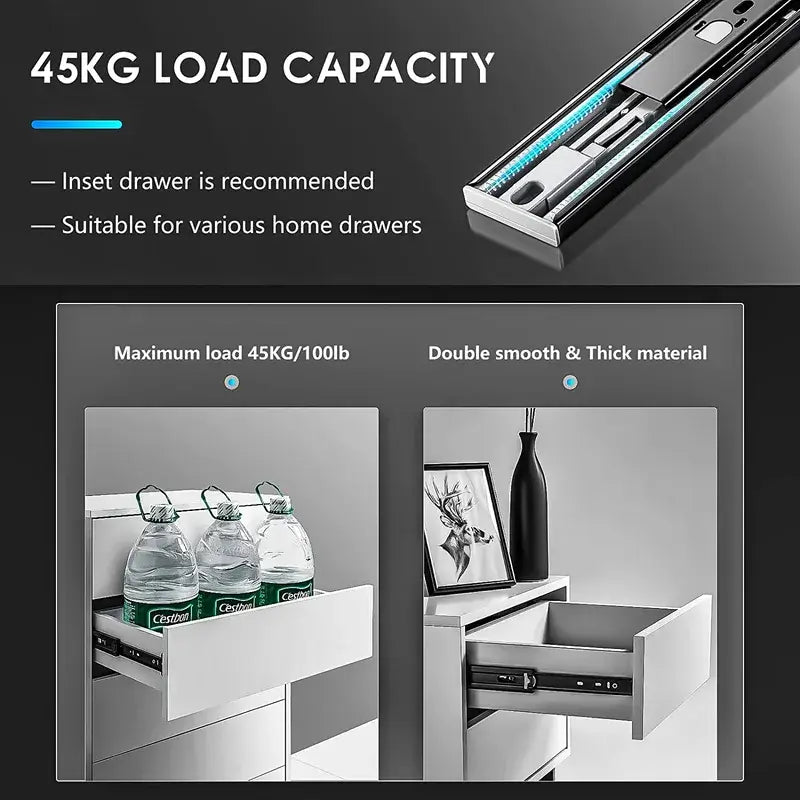

• Load capacity: 45KG/100LB
• Installation method: side mount
• Plate thickness: outer slider (1.2mm) / middle slider (1.2mm) / inner slider (1.5mm)

Application scenario:

• Ideal for kitchens, offices, shop fixtures, institutional and residential trades, cabinets, warehouses, containers, industrial drawers, RV chests of drawers and more.

Packing:

• 2pcs/pair (One left and right), with a total of 8 mounting screws at both ends
