AOLISHENG 100 lb Full Extension Soft-Close Side Mount Drawer Slides for Kitchen, Bathroom & Cabinets – 3 Pairs (K1245)

Soft Close Drawer Slides

100 lb Load Capacity | Hydraulic Shock Absorber | Silent & Smooth | Side Mount | 3 Pairs Minimum

Product Description

The AOLISHENG Soft Close Drawer Slides feature built-in damping and silent devices, allowing drawers to close smoothly and quietly with a sound level as low as 25 dB. Designed for residential and office applications, these slides provide safe, quiet, and effortless operation.

Constructed from 1.2mm high-quality cold-rolled steel, each slide supports up to 100 lb (45 kg), 40 lb more than standard slides. The fully extended, detachable 3-fold design allows complete drawer access and makes installation easy. Two rows of solid steel balls ensure smooth and frictionless operation, while the slides are resistant to rust and noise.

Tested for over 150,000 open-and-close cycles, these slides offer a service life of up to 30 years, combining durability with quiet performance.

Key Features

• Brass Hydraulic Shock Absorber: Automatic soft-close, quiet and safe operation.

• High Load Capacity: Supports up to 100 lb (45 kg), 40 lb more than standard slides.

• Full Extension & Detachable: 3-fold design allows complete access and easy installation.

• Smooth & Silent Operation: Dual rows of solid steel balls ensure frictionless, quiet performance.

• Durable & Long-Lasting: Tested for 50,000+ cycles; service life up to 30 years.

• Rust-Resistant: Resistant to corrosion, suitable for kitchens, bathrooms, or utility areas.

Installation Guide

• Slide Length: 11.81 in (300 mm), Pull-Out Length: 10.94 in (278 mm), suitable for drawers with internal depth ≥ 11.81 in

• Mounting Clearance: Left 0.5 in / Right 0.5 in (12.7 mm)

• Package Includes: 8 mounting screws

• Installation Steps:

  1. Push the inner ball bearing to the top of the slide rail

  2. Connect the slide rail to the drawer

  3. Gently push to complete installation

• Ensure parallel alignment: Misaligned slides affect normal use

Notes

• Minimum Purchase: 3 pairs

• Ideal for users seeking quiet, smooth, high-load, and durable soft-close drawer slides

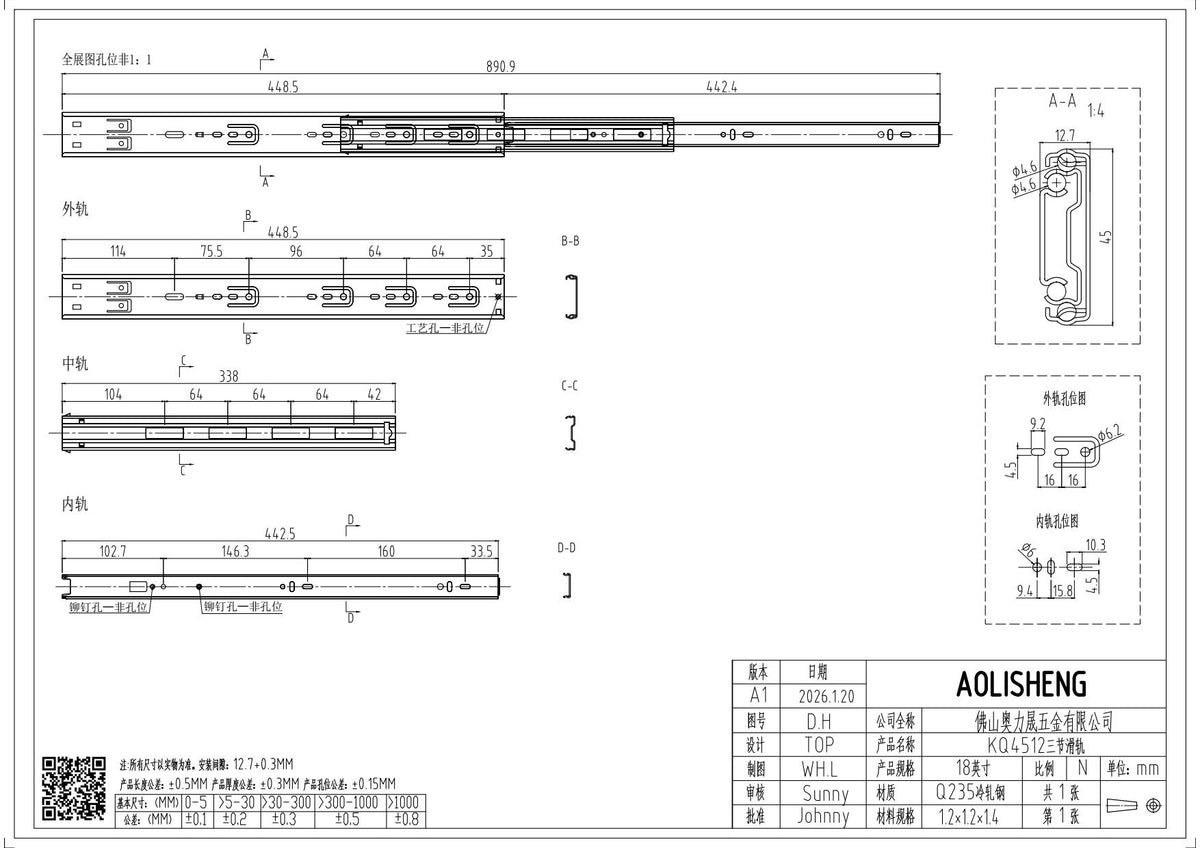

Product Size:

• Width: 45MM
• Thickness: 1.2MM
• Size included: 12 14 16 18 20 22 24 inch

Process:

• Function: Soft Close
• Material: Q235 cold rolled steel
• Handling: electrophoretic black
• Structure: detachable

Installation requirements:

• Installation thickness:12.6+0.2mm
• Load capacity: 45KG/100LB
• Installation method: side mount
• Plate thickness: outer slider (1.2mm) / middle slider (1.2mm) / inner slider (1.5mm)

Application scenario:

• Ideal for kitchens, offices, shop fixtures, institutional and residential trades, cabinets, warehouses, containers, industrial drawers, RV chests of drawers and more.

Packing:

• 2pcs/pair (One left and right), with a total of 8 mounting screws at both ends
