AOLISHENG 265lbs Heavy Duty Drawer Slides Soft Close Side Mount Slide Rails 1 Pair - K2053

Heavy Duty Soft Close Drawer Slides

265 lb Load Capacity | Soft Close | Full Extension | Side Mount

Product Description

The AOLISHENG Heavy Duty Soft Close Drawer Slides are designed for maximum strength, smooth operation, and quiet performance. Perfect for kitchens, offices, shops, industrial cabinets, warehouses, containers, industrial drawers, and special vehicles, these slides ensure stable, silent, and secure drawer movement, preventing bouncing and misalignment.

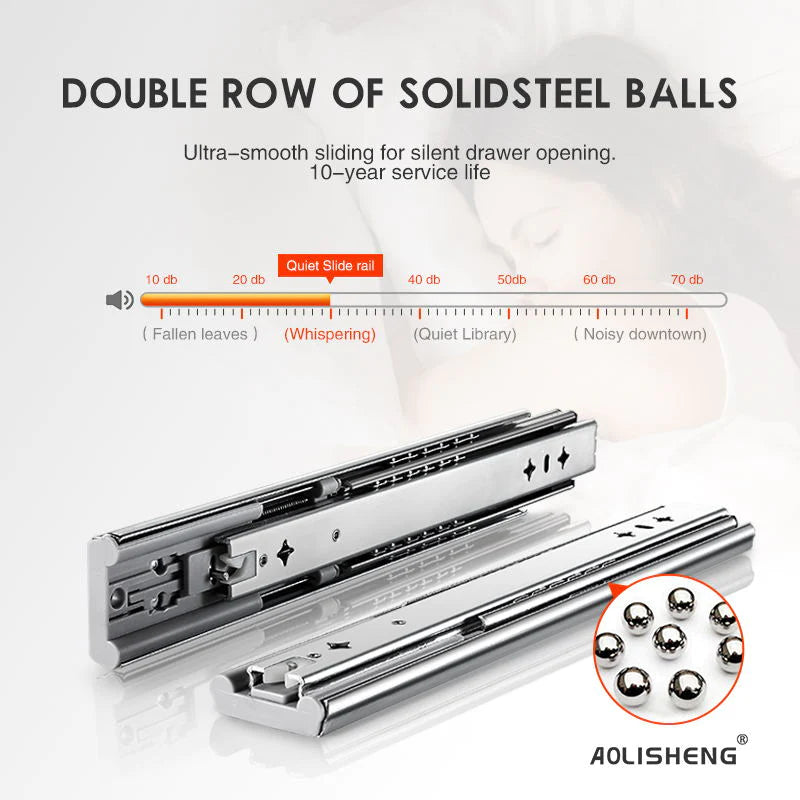

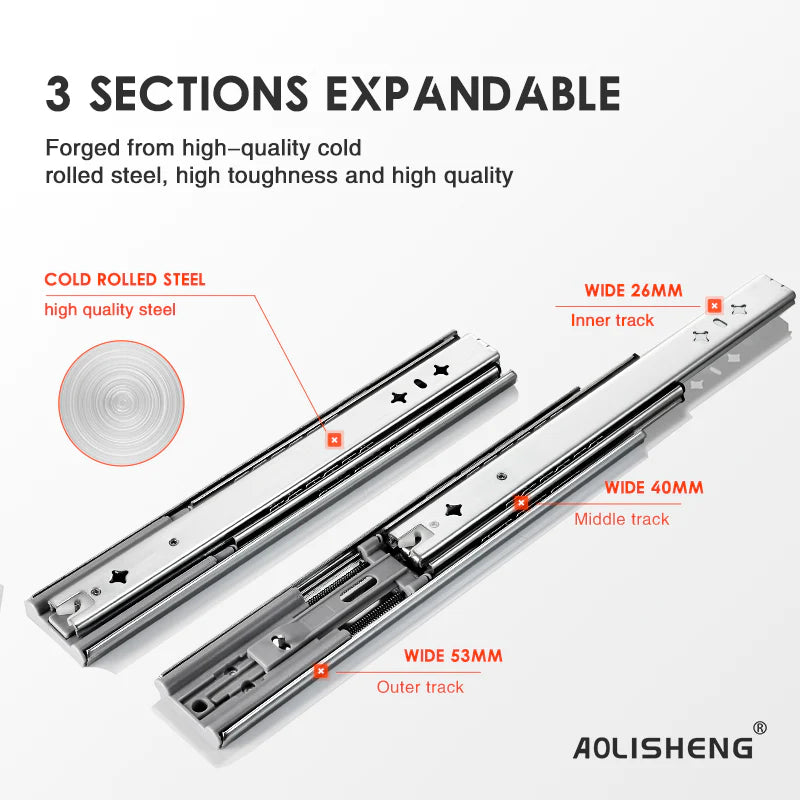

Featuring a full-extension, three-section design, drawers can be completely pulled out for easy access. Constructed from 2.0mm thick Q235 Cold-Rolled Steel, these slides can handle up to 265 lb (120 kg), offering exceptional durability and long-lasting performance.

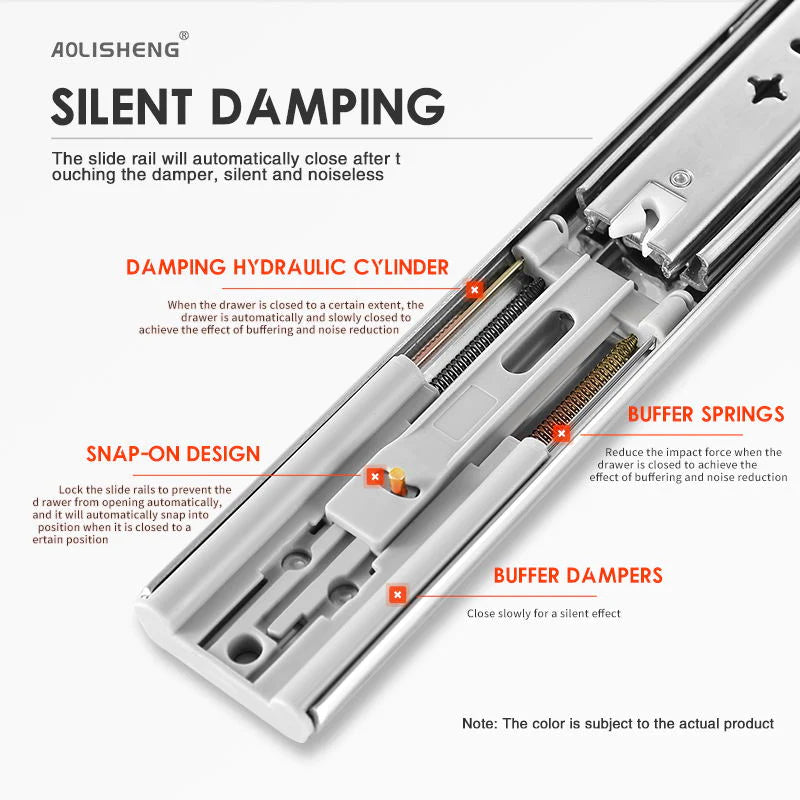

The soft-close mechanism uses dual springs and a hydraulic cylinder to provide automatic, smooth, and quiet closure, delivering effortless, reliable operation every time.

Key Features

• High Load Capacity: Supports up to 265 lb (120 kg) for heavy-duty applications.

• Soft Close Technology: Advanced damping ensures smooth, silent, and automatic closure.

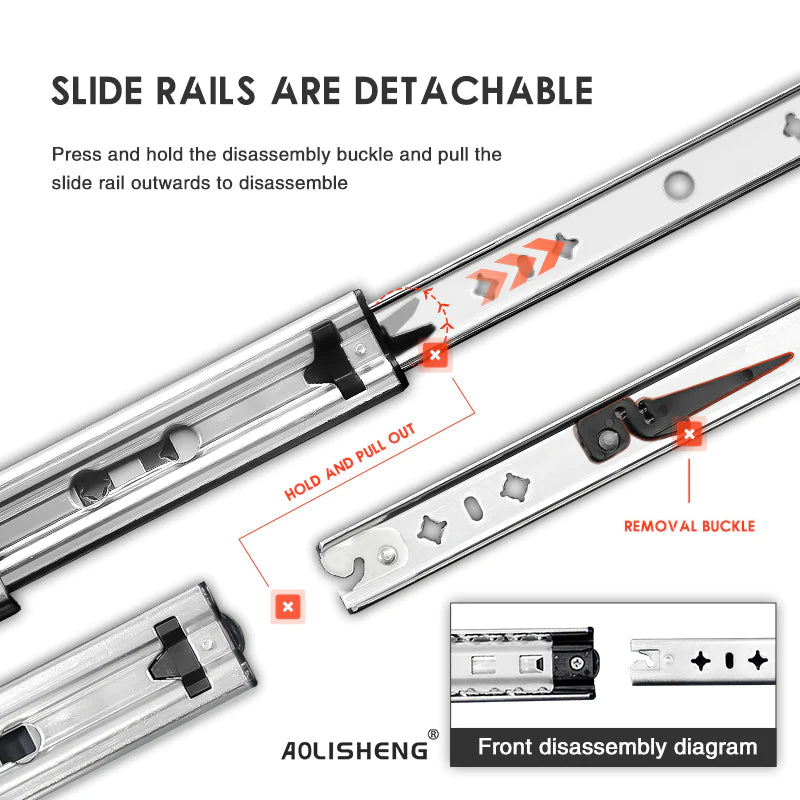

• Full Extension & Detachable: Three-section design allows full access to the drawer and easy installation.

• Durable Construction: Made from 2.0mm Q235 Cold-Rolled Steel, engineered to withstand repeated heavy use.

• Rust-Resistant: Galvanized blue sealing treatment isolates the rail from air and water, preventing corrosion and oxidation.

• DIY-Friendly Installation: Includes detailed installation video for fast setup.

Installation Guide

• Keep Rails Parallel: Both sides must remain parallel; misalignment will affect drawer operation.

• Mounting Screws: Not included; M5 screws can be purchased separately according to your installation scenario.

• Slide Length: Choose slide length according to drawer depth; rail length ≤ drawer length.

Applications

• Kitchens, offices, and residential cabinets

• Retail shop fixtures and storage units

• Industrial cabinets, warehouses, and containers

• Special vehicles and automotive drawers

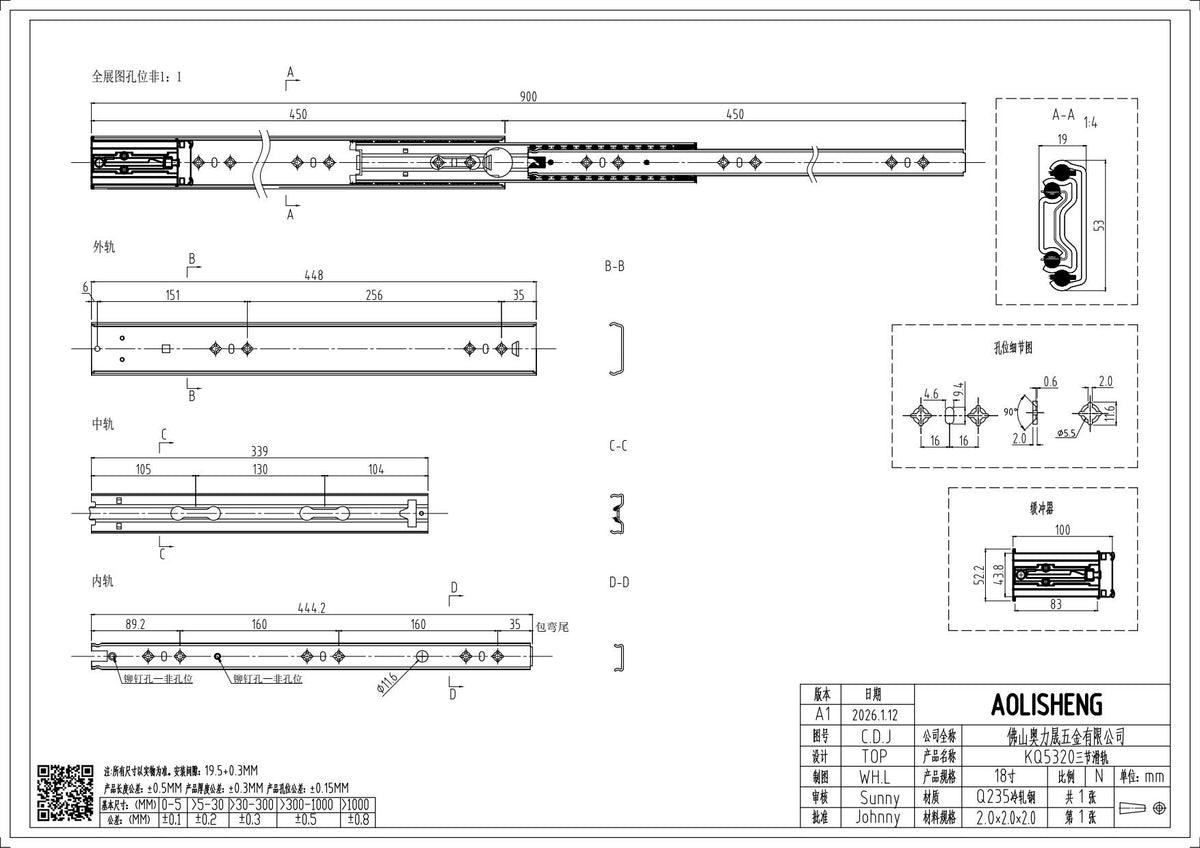

Product Dimensions:

• Width: 53MM
• Thickness: 2.0MM
• Include Size: 12 14 16 18 20 22 24 26 28 30 32 inch

Craft：

• Material: Q235 cold rolled steel
• Deal With: Surface electroplating blue zinc
• Structure：Detachable
• Function: soft close

Installation Requirements：

• Installation thickness: 19+0.5mm
• Load capacity: 120KG/265LB
• Installation method: side mount
• Plate Thickness: Outer Slider (2.0mm) / Middle Slider (2.0mm) / Inner Slider (2.0mm)

Application Scenario：

shelves, cabinets, industrial drawers, RVs, trucks, woodworking, vending machines, etc.
