Heavy Duty Drawer Slides Explained: Types, Load Ratings, and How to Choose
A practical guide for RV builds, truck bed storage, workshops, and heavy-duty applications
1. What Are Heavy Duty Drawer Slides? (And Why They Matter)
When you’re trying to build a reliable RV kitchen, upgrade your truck-bed storage, or set up a heavy-duty drawer system for tools or camp gear, the last thing you want is a slide that sags, bends, or jams once it’s fully extended. That’s why so many people look for heavy-duty drawer slides—because regular cabinet slides simply can’t handle 300 lb, 500 lb, or even 660 lb loads.
The problem? There are too many types, load ratings, and materials on the market. It’s hard to know which slide actually fits your setup.
This guide breaks it all down in a simple and practical way—load ratings, slide types, materials, sizes, and how to choose the right slide for your RV, truck, shop, or storage system. Everything is written to be easy to follow, so you can avoid the common mistakes most people make.
In short: this article helps you choose the right heavy-duty drawer slides with confidence.
2. What Exactly Are Heavy Duty Drawer Slides?
Heavy-duty drawer slides are reinforced runners designed to support far heavier loads than standard cabinet slides. Think situations where a regular slide might bend or jam—heavy-duty slides are built to stay stable even with 300 lb, 500 lb, or 660 lb loads.
What makes them stronger is the combination of thicker steel, full-extension structures, and high-precision ball bearings that keep movement smooth even at full extension. Many models also use dual-track / double-row bearing designs, which is why this style is common in RV and industrial storage builds.
You’ll typically see heavy-duty slides in setups where reliability truly matters—
RV kitchen pull-outs, truck bed drawers, tool systems, overlanding builds, industrial cabinets, and more.
In short: these slides are built for people who need strength, stability, and full-extension performance, not basic home-cabinet convenience.
3. Common Types & Real-World Use Cases (Which One Fits Your Build?)
Heavy-duty drawer slides come in several styles, but most U.S. buyers fall into a few clear categories. Here’s a practical breakdown to help you match the right slide to your project.

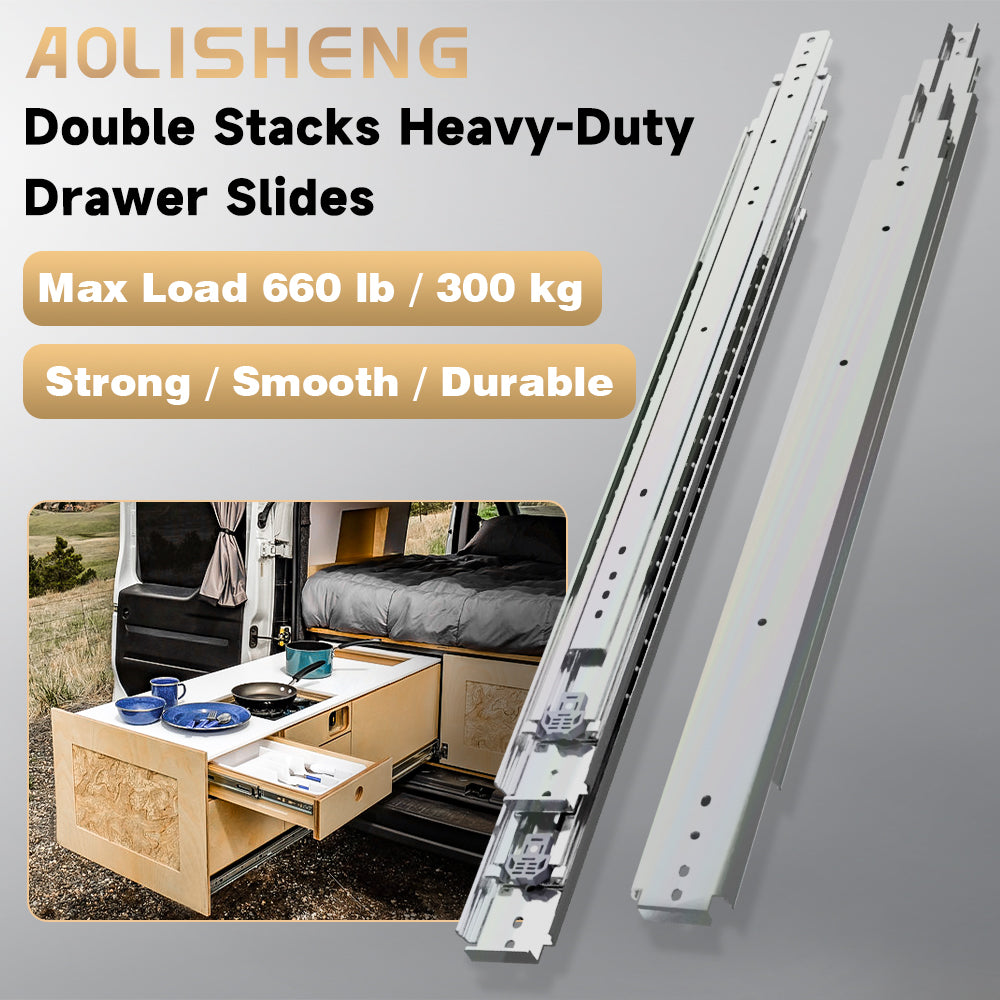

1) 76mm Double-Track Heavy-Duty Slides
Ideal for full-extension RV kitchens, overland drawer systems, or heavy storage platforms.
Why people choose them:
-
Dual bearing tracks → smoother movement under heavy loads
-
Extra-thick 39mm steel + 76mm rail width → higher stability
-
660 lb load rating → suitable for fridges, stoves, generators, recovery gear
Best for: RV pull-outs · truck bed drawers · camper kitchens · industrial equipment
2) Truck Bed Drawer Slides
Designed for pickups, vans, and work trucks where drawers extend outside the vehicle.
Advantages:
-
Long travel lengths for full access
-
Smooth ball-bearing movement
-
Great for overlanding, worksite tools, and camping setups
Best for: Contractors · overlanders · truck bed platforms
3) Industrial Drawer Slides
Built for environments where durability and strength matter.
-
Load ratings commonly 300–660 lb
-
Reinforced steel construction
-
Full-extension or over-travel available
Best for: Factories · workshops · vending machines · equipment cabinets
4) RV / Overland Drawer Slides
Designed for moving vehicles where vibration resistance matters.
-
Optional lock-in / lock-out
-
Strong rails with minimal wobble
-
Great for cooking gear, tools, or electrical systems
Best for: Vans · off-road trucks · camper conversions
5) Bottom-Mount Heavy-Duty Slides
Used when you want clean aesthetics or platform-style sliding systems.
-
Hidden installation
-
Strong support from below
-
Ideal for galley modules and battery trays
Best for: RV kitchens · mobile workstations · compact campers
4. How to Choose the Right Heavy-Duty Drawer Slides
Choosing the right slides can make a huge difference in stability, safety, and durability. Here are the five criteria U.S. users care about most:
1. Load capacity (300 kg / 660 lb recommended)
Load rating is the first thing to check. Look for pair-rated capacity, which is more realistic than single-slide ratings. Higher load ratings reduce wobble and improve durability—especially for wide or deep drawers.
2. Slide width (76 mm recommended for stability)
Wider slides = stronger sidewalls + larger ball bearings.
This greatly improves stability during full extension, especially in RVs or trucks where drawers experience dynamic loads.
3. Steel thickness (2.0–2.5 mm)
Thicker steel resists bending when fully extended.
For heavy or outdoor builds, 2.5 mm is widely preferred.
4. Full extension vs. over-extension
-
Full extension: Access the entire drawer
-
Over-extension: Useful for deep drawers or tailgate setups where the drawer must extend beyond 100%
5. Corrosion resistance (zinc-plated + sealed blue)
Outdoor / humid / off-road conditions can destroy untreated steel.
A good coating prevents rust, moisture damage, and wear, extending service life.
5. Aolisheng Recommended Solutions
Different users have different needs, so here’s a simple guide:
For RV & camper builds
Slides must handle vibration and support outdoor kitchens.
A 76mm dual-track slide provides excellent stability and long-travel extension.
Zinc-plated + sealed blue coating is ideal for outside use.
For truck bed drawers
Truck drawers often carry tools, fridges, or recovery gear.
A 660 lb / 300 kg slide with 2.5 mm steel and wide rails helps keep drawers stable—especially when extended unevenly.
For workshop & industrial drawers
High-frequency use requires strong raceways and bearings that stay smooth under load.
Dual-track designs distribute weight more evenly and reduce noise.
Why many builders choose a 76mm dual-track slide:
It combines high load rating, corrosion resistance, thicker steel, and long-travel full extension into one practical solution.
6. Real-World Applications
Here are some real examples to help visualize how these slides perform:
1. RV kitchen pull-outs
Full extension makes outdoor cooking easier and cleaner.
Long travel (up to 89.76 in) is especially useful.
2. Truck bed drawer systems
Contractors and overlanders depend on stability when drawers are heavily loaded and fully extended.
Wide rails + 660 lb rating prevent flexing.
3. Toolbox and workshop drawers
Cold-rolled steel + dual-row bearings ensure smooth motion even with constant daily use.
4. Outdoor equipment pull-outs
Works well for fridges, generators, kitchen modules, and workbenches—especially in humid or outdoor environments.
