Installing heavy duty drawer slides the right way is one of the most important steps in building a stable, smooth, and long-lasting storage system. Whether you're upgrading a work van, building a truck bed drawer system, setting up an RV kitchen, or constructing industrial tool cabinets, proper installation ensures that your drawer won’t sag, jam, or fail under load.
This guide explains how to install heavy duty drawer slides, specifically the 76mm double-track heavy duty drawer slides from AOLISHENG—our strongest, smoothest, and most stable runners designed for demanding applications.
We cover both DIY home builders and professional contractors, with clear steps, mounting options, common mistakes, and best practices for achieving a reliable setup.
1. Why 76mm Heavy Duty Drawer Slides Are Different
Before installation, it helps to understand what makes these heavy duty drawer slides unique.

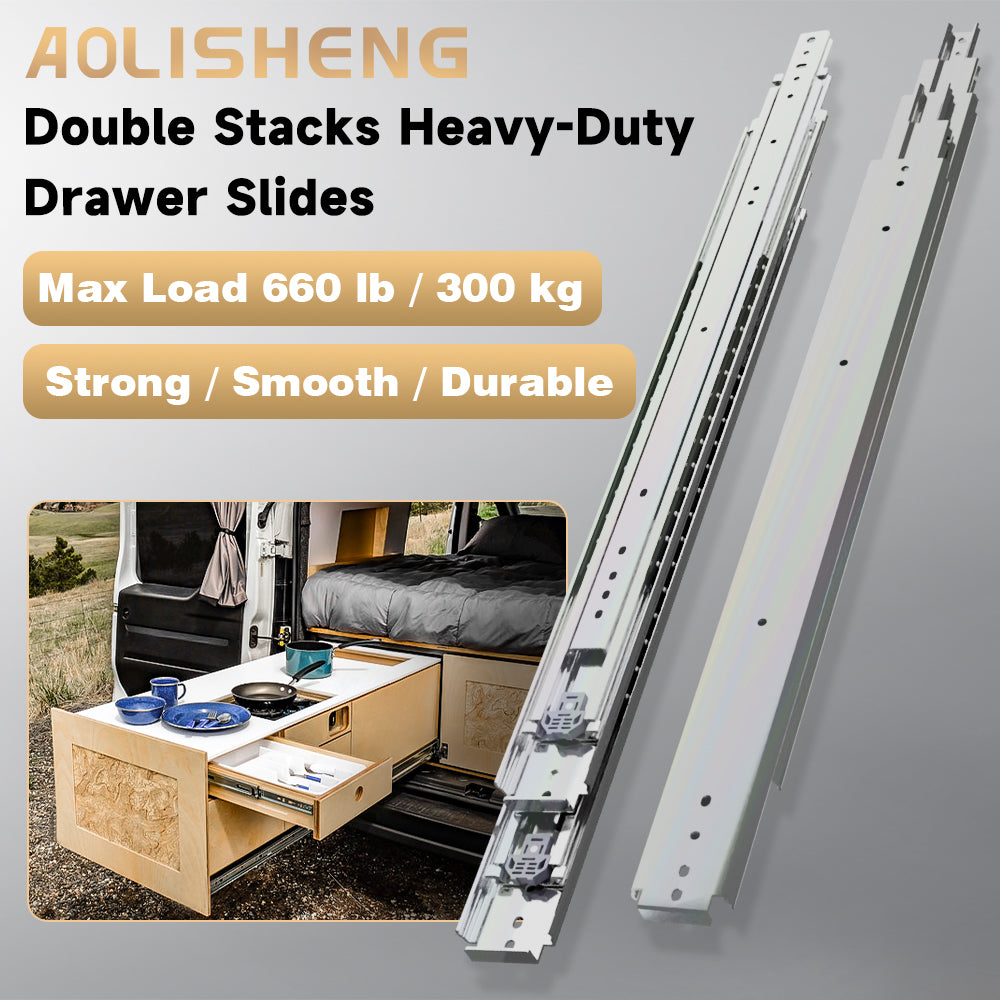

AOLISHENG 76mm slides are:
-
Double-track drawer slides with dual rows of steel ball bearings
-
Full extension heavy duty drawer slides (reach the full length for easy access)
-
Made from 2.5mm cold-rolled steel for greater rigidity
-
Rated for up to 660 lb (300 kg) depending on length
-
Available in side-mount heavy duty slides configurations
These characteristics make them ideal for:
-
Truck bed drawer slides (full extension outdoor use)
-
Van conversion drawer slides for tool and camping storage
-
RV drawer slides for kitchen systems and fridge pull-outs
-
Outdoor kitchen slides
-
Heavy duty fridge slides
-
Tool drawer slides
-
Industrial drawer slides
When strength, stability, and smooth travel matter, 76mm heavy duty runners outperform standard slides.
2. Tools & Materials You’ll Need
-
Power drill & drill bits
-
Measuring tape
-
Carpenter’s square
-
Screws (#10 recommended for heavy duty drawer runners)
-
Level
-
Pencil or marker
-
Shims (optional for uneven surfaces)
-
Safety gloves
-
AOLISHENG 76mm heavy duty drawer slides (your chosen length)
Pro tip for professionals:
✔ Use threaded inserts or rivnuts for industrial metal drawers.
✔ For vans/trucks, use T-nuts or countersunk bolts to anchor into plywood platforms.
3. Side Mount vs Bottom Mount — Which Should You Use?
Most wide heavy duty drawer slides—especially 76mm double-track models—are designed for side mounting. This provides maximum weight capacity and the strongest structural support.
Side Mount (Recommended)
-
Supports the full rated load
-
Best for van, truck, RV, and industrial use
-
Maximum stability
-
Works perfectly with double-track slides
-
Ideal for 660 lb drawer slides installation
Bottom Mount
Not recommended for heavy duty loads, but occasionally used for:
-
Lightweight kitchen drawers
-
Decorative furniture
-
Non-load-bearing applications
For all van conversion, truck bed systems, tool drawers, and industrial cabinets, always choose side mount heavy duty slides.
4. Step-by-Step: How to Install Heavy Duty Drawer Slides (Side Mount)
Step 1 — Measure Your Space
Measure:
-
Cabinet opening width
-
Drawer width
-
Slide length
-
Installation clearance
AOLISHENG 76mm heavy duty drawer slides require:
-
39.2 mm (1.54 in) clearance per side
-
Slide length = drawer depth or 1–2 inches shorter
For truck bed drawers and van platforms, verify you have enough room for full extension installation.
Step 2 — Remove the Inner Rail
Pull the slide to full extension.
Locate the black disconnect lever.
Press it and slide the inner rail out.
This rail attaches to your drawer.
The outer rail stays on the cabinet or platform.
Step 3 — Install the Outer Rail (Cabinet / Platform Side)
-
Hold the outer rail level against the cabinet or drawer frame
-
Align it with your marked centerline
-
Drill pilot holes
-
Secure with heavy duty screws
-
Check level at least twice
Tip for van conversion and truck builds:
✔ Add 1–2 mm shims if your plywood platform isn’t perfectly flat.
✔ For industrial drawer slides, ensure the metal frame is square.
Step 4 — Attach the Inner Rail to the Drawer
-
Align the rail flush and parallel to the bottom edge
-
Mark hole locations
-
Drill and fasten securely
-
Double-check the rail is perfectly level
If the inner rail tilts even slightly, the drawer will jam under heavy load.
Step 5 — Insert the Drawer and Lock the Rails Together
Slide the drawer straight into the cabinet.
You’ll hear a click when the ball bearings engage the inner rail.
Test:
✔ Smooth travel
✔ No rubbing or scratching
✔ No sagging
✔ Full extension works properly
If anything feels uneven, adjust the screw positions.
5. Common Installation Mistakes (and How to Avoid Them)
❌ 1. Cabinet and drawer not square
→ Heavy duty drawer runners require precision.
❌ 2. Using wrong screws
→ Weak screws can shear under load.
❌ 3. Mounting on thin plywood
→ Reinforce with 3/4" (18mm) plywood or steel brackets.
❌ 4. Installing slides too high/low
→ Must align perfectly on both sides.
❌ 5. Not allowing enough clearance
→ Measure twice before drilling.
6. Real-World Use Cases (For C-End & B-End Users)
For Van-life / DIY Builders
-
Kitchen pull-outs
-
Fridge slides
-
Storage compartments
-
Battery trays
-
Outdoor camping kitchens
These use outdoor kitchen slides, RV drawer slides, and heavy duty fridge slides extensively.
For Home / Garage DIY Users
-
Tool drawer slides
-
Workbench drawers
-
Wide heavy duty drawer slides for CNC tools
-
Basement storage cabinets
For Contractors / Fabricators / OEM Manufacturers
(B-end users who bring profit)
-
Industrial tool cabinets
-
Warehouse storage systems
-
Vehicle upfitting companies
-
Commercial kitchen equipment
-
Mobile workshop drawers
-
Fleet service van conversions
These users rely on industrial drawer slides and heavy duty drawer runners for durability and reliability.
AOLISHENG slides support long-term, repetitive, heavy-load usage—ideal for professional environments.
7. Why Choose AOLISHENG 76mm Heavy Duty Drawer Slides
AOLISHENG is trusted by:
-
DIY builders
-
Van conversion companies
-
Contractors
-
Industrial fabricators
-
Fleet upfitting companies
Our double-track heavy duty drawer slides provide:
-
Higher load capacity
-
Smoother movement
-
Longer lifespan
-
Better anti-corrosion protection
-
Stronger structural rigidity
Brand advantages (naturally integrated):
-
AOLISHENG heavy duty slides
-
AOLISHENG 76mm slides
-
AOLISHENG drawer slides
8. FAQ: Installation & Troubleshooting

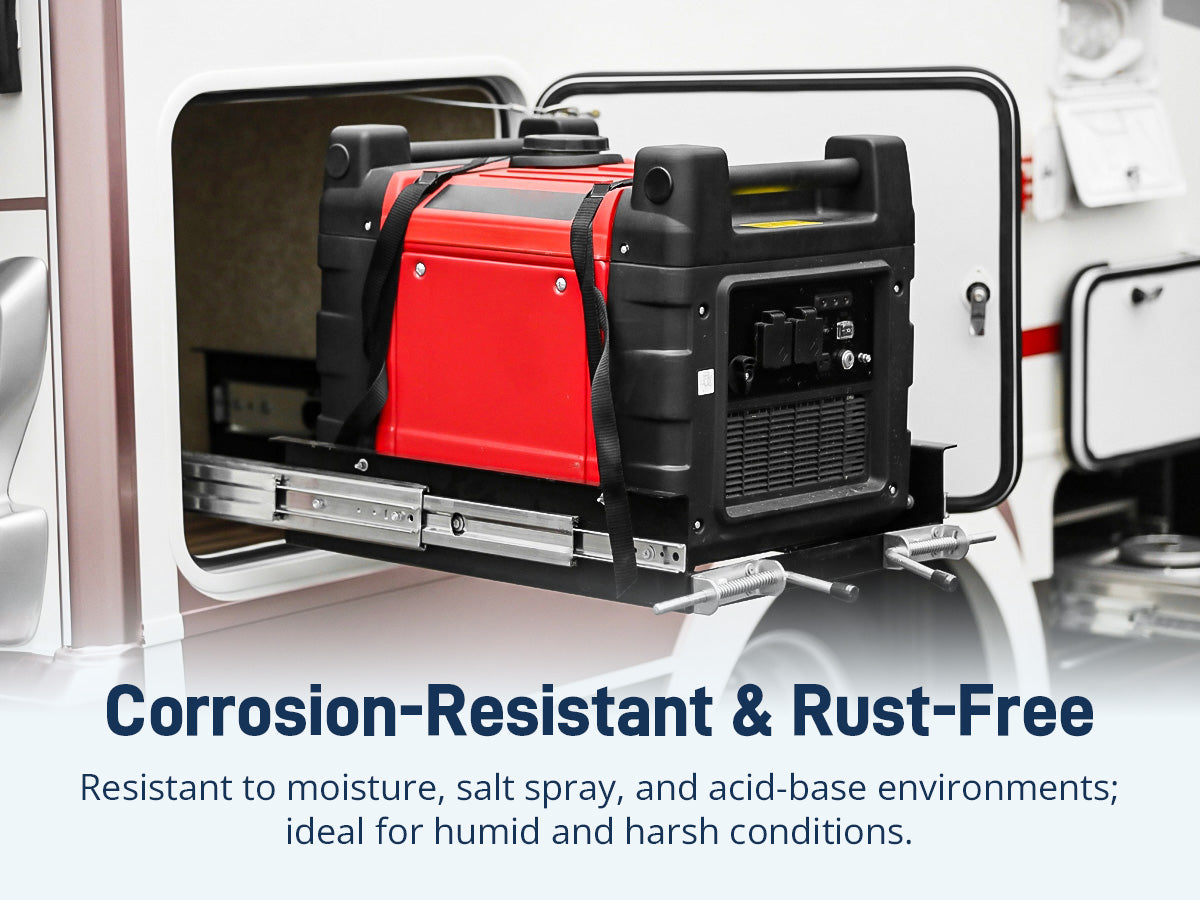

Q1. Can these slides handle outdoor use?
Yes, especially for truck bed drawer slides, outdoor kitchen slides, and RV systems.
Q2. What’s the weight capacity after installation?
Up to 660 lb, depending on slide length and drawer width.
Q3. Do I need lubrication?
AOLISHENG slides are pre-lubricated. Add lithium grease every 6–12 months for heavy industrial use.
Q4. Can I bottom-mount them?
Not recommended for heavy duty applications. Use side mount heavy duty slides.
Q5. What if the drawer sags?
Your drawer or cabinet may not be square—re-align the rails.
Conclusion
Installing heavy duty drawer slides correctly is the key to long-lasting, stable storage in vans, trucks, RVs, workshops, and industrial settings. The AOLISHENG 76mm double-track heavy duty drawer slides offer unmatched performance for both DIY users and professional builders.
Follow the steps in this guide, avoid common mistakes, and you’ll enjoy smooth, secure, full-extension performance for years.
