Managing Heavy Storage Drawers with Reinforced Slide Systems
Heavy duty full extension drawer slides are widely used in storage systems that require strong load support and complete access to drawer contents. From workshop cabinets to utility storage and custom furniture, these slides are designed to handle heavier drawers while maintaining smooth and stable movement.
This article explains how to plan, install, and fine tune heavy duty full extension drawer slides to achieve reliable performance in high load applications.

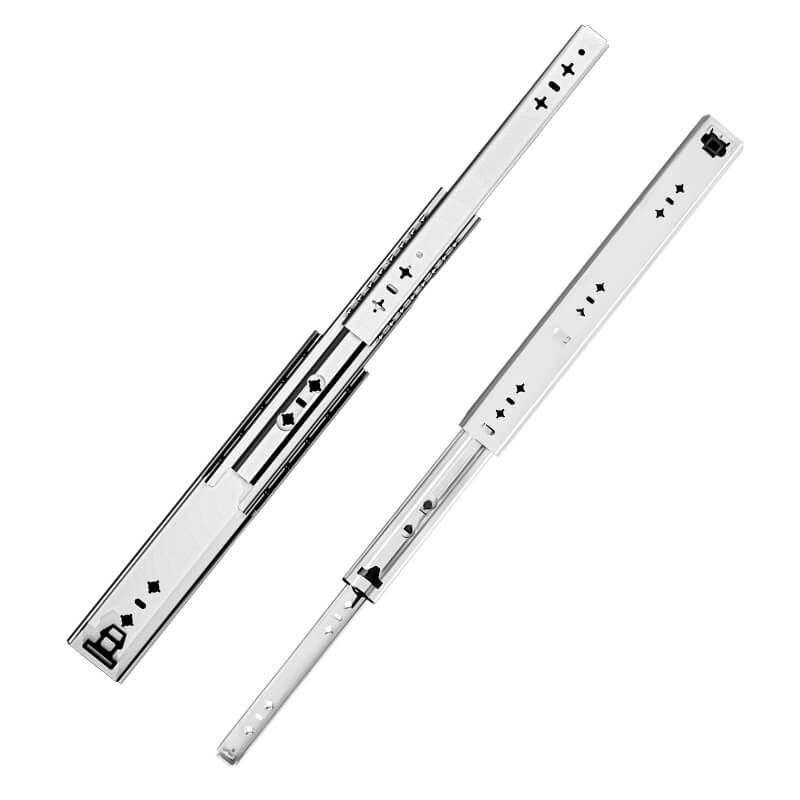

Understanding Heavy Duty Full Extension Drawer Slides
Full extension drawer slides allow the drawer to extend completely beyond the cabinet opening, making it easier to reach items stored at the back. Heavy duty versions are built with reinforced steel and precision ball bearing systems to support increased weight without sacrificing smooth motion.
These slides are commonly used where durability and accessibility are equally important.
Typical Applications
Heavy duty full extension drawer slides are suitable for:
Workshop and garage cabinets
Utility and storage furniture
RV and mobile storage systems
Tool drawers and equipment cabinets
Custom commercial fixtures
Their versatility makes them a popular choice across multiple industries.
Planning the Cabinet and Drawer Design
Before installation, careful planning of the cabinet and drawer structure is essential.
Cabinet side panels should be rigid and securely fixed to prevent flexing under load. Drawer boxes must be square, with reinforced joints and a solid bottom panel capable of supporting heavy contents.
Accurate planning helps prevent alignment problems and ensures smooth long term operation.
Preparation Before Installation
Good preparation reduces adjustment work later.
Measure cabinet depth and internal width precisely
Confirm side clearance required by the slides
Check that mounting surfaces are level and parallel
Ensure the drawer box is square and structurally strong
Taking time at this stage improves installation accuracy.
Installing the Cabinet Side Components
Begin by attaching the cabinet side components inside the cabinet.
Mount both slides at the same height and keep them perfectly parallel from front to back. Use measuring tools to maintain consistent spacing.
Secure the slides with appropriate fasteners and tighten them firmly to support heavy loads.
Attaching the Drawer Side Components
Attach the drawer side components to both sides of the drawer box.
Position the slides evenly and ensure they are level. Proper alignment distributes weight evenly and reduces wear on the ball bearing system.
Double check positioning before fully tightening screws.
Inserting the Drawer and Performance Testing
Carefully insert the drawer into the cabinet and engage the slide components.
Open and close the drawer several times to confirm smooth movement and full extension. The drawer should remain stable without tilting or resistance.
Gradually add load to test performance under real use conditions.
Adjustment and Fine Tuning
Minor adjustments can improve performance significantly.
If movement feels stiff, recheck side clearance and alignment
If the drawer does not extend fully, inspect rear positioning
If noise occurs, ensure all fasteners are secure
Fine tuning helps maximize slide life and user comfort.
Common Installation Issues
Slides installed at uneven heights
Cabinet panels flexing under load
Drawer boxes not reinforced
Improper clearance
Addressing these issues early helps prevent long term problems.
Maintenance and Long Term Use
For continued smooth operation:
Keep slide tracks clean
Periodically inspect mounting screws
Avoid exceeding rated load capacity
Check alignment during routine maintenance
Consistent care extends service life.
Final Thoughts
Heavy duty full extension drawer slides offer a strong and versatile solution for high load storage projects. With careful planning, accurate installation, and proper maintenance, these slides deliver smooth movement, full access, and dependable performance across a wide range of storage applications.
