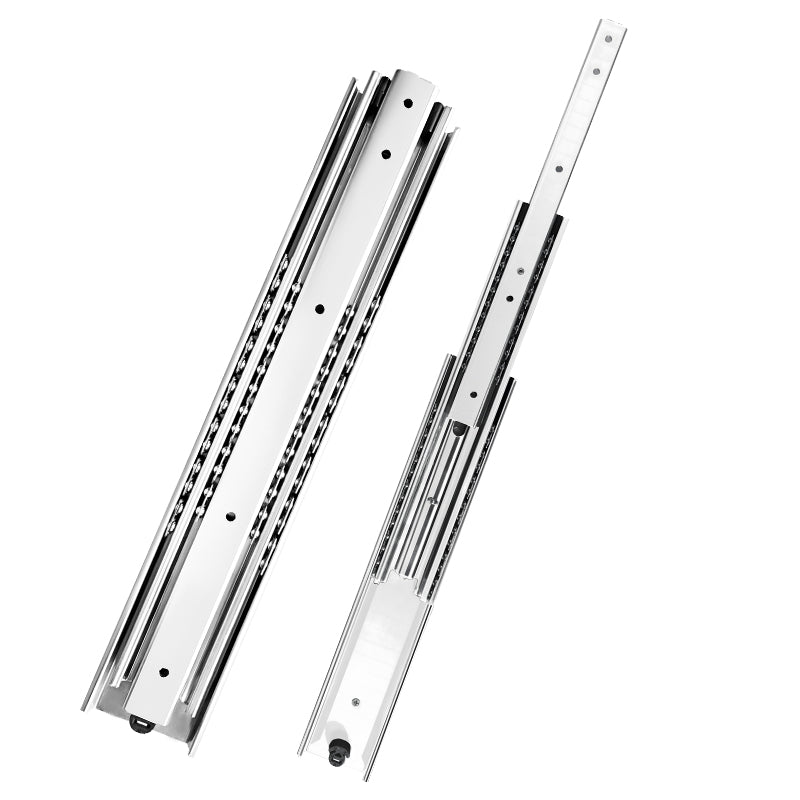

Setting Up High Load Industrial Drawers with Heavy Duty Slides
Industrial storage drawers are designed to carry heavy tools, equipment, and materials while maintaining stable and smooth movement. In workshops, factories, warehouses, and commercial workstations, standard drawer slides are often not strong enough to handle repeated use and high loads. Heavy duty industrial drawer slides are built to provide the strength and reliability required in these demanding environments.
This installation focused tutorial explains where heavy duty industrial drawer slides are most effective, common installation challenges, and correct installation practices to ensure safe and long term performance.
Why Industrial Storage Requires Heavy Duty Drawer Slides
Industrial drawers are typically wider, deeper, and heavier than household drawers. They are frequently opened and closed under load, which places significant stress on slide hardware.
Heavy duty drawer slides offer increased load capacity and reinforced construction to prevent bending or sagging. Smooth ball bearing movement reduces friction and improves efficiency when accessing tools or equipment. These features make them suitable for environments where durability and reliability are essential.
Common Installation Challenges in Industrial Applications
Installing drawer slides in industrial settings requires careful planning.
Cabinet frames may be made of steel or thick plywood, requiring appropriate fasteners. Large and heavy drawers can be difficult to align during installation. If slides are not mounted level and parallel, drawers may bind, wear prematurely, or become unsafe under load.
Recognizing these challenges helps prevent installation errors and performance issues.
Preparing for Installation
Proper preparation is critical before installing heavy duty industrial drawer slides.
Measure the cabinet opening and drawer dimensions accurately
Confirm side clearance requirements for side mounted slides
Ensure the cabinet structure is reinforced and capable of supporting heavy loads
Check that the drawer box is square, rigid, and well constructed
Strong mounting surfaces and accurate measurements are essential for reliable operation.
Step by Step Installation Guide
1 Install the Slides on the Cabinet Structure
Mount the cabinet side components securely inside the cabinet or equipment frame. Ensure both slides are level, parallel, and firmly fastened using suitable hardware.
2 Attach the Slides to the Drawer
Fix the drawer side components to both sides of the drawer box at the same height. Proper alignment ensures even load distribution and smooth movement.
3 Insert the Drawer and Test Movement
Carefully slide the drawer into place and engage the slide mechanisms. Open and close the drawer several times to confirm smooth operation and full extension.
4 Test Under Load
Gradually add weight to the drawer and test operation again. The drawer should remain stable, move smoothly, and show no signs of sagging.
Common Installation Mistakes to Avoid
Slides mounted unevenly or not parallel
Mounting into weak or unsupported surfaces
Unequal mounting height on left and right sides
Exceeding the rated load capacity
Avoiding these mistakes improves safety and extends service life.
Maintenance Tips for Industrial Use
Inspect mounting screws regularly for loosening
Keep slide tracks clean from dust and debris
Avoid sudden impacts or excessive overloading
Routine maintenance helps maintain consistent performance.
Final Thoughts
Heavy duty industrial drawer slides are a key component in high load storage systems. They provide the strength, stability, and smooth movement needed for demanding industrial environments.
With proper preparation, accurate installation, and regular inspection, these drawer slides deliver reliable performance, improved safety, and long term durability for industrial storage applications.
