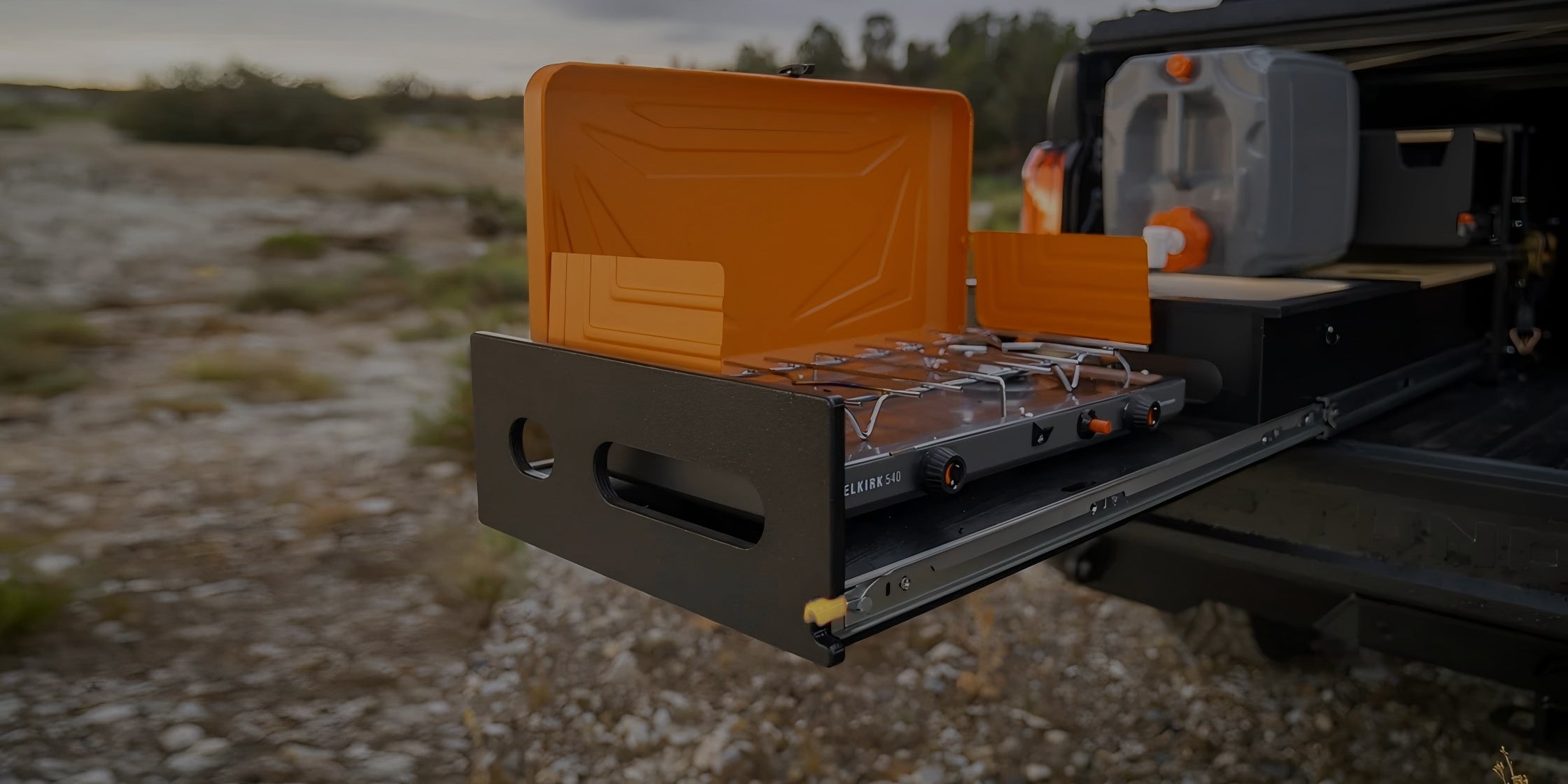

Easy to bear camp kitchen box

Upgrade Your RV Storage Solutions Today—Now!

Heavy duty slide with lock

specification

AOLISHENG DIY Heavy Duty Locking Drawer Slides for Camper

Model number: D2576
Width: 76mm
Bearing capacity: 500 lbs(within 18")
Function: With lock
Size: 12 inches - 60 inches(400 - 2000 mm)
Unit for sale: 1-Pair (2 Pieces)
Mounting:‎Side mounted
Material: Q235 cold rolled steel
Installation clearance: 19.2±0.5mm
Plate thickness: Outer rail-2.5 mm, middle rail-2.5 mm, inner rail-2.5 mm

Four Column Layout

Complete Set - Everything You Need

You will receive one pair (two pieces) of heavy-duty drawer slides, specially designed to handle your toughest storage needs. Please note, screws are not included—you can purchase M6 screws separately for easy installation. The full-extension, three-section design allows you to pull the drawer completely out, ensuring easy access to all stored items without any hassle.

Durable Steel Construction - Supports Up to 500 lbs

Crafted from 2.5mm thick Q235 cold-rolled steel, these slides offer exceptional strength and durability, supporting up to 500 pounds. Built to withstand even the heaviest loads without bending or warping, they are perfect for demanding applications such as car modifications, mechanical equipment storage, toolboxes, and shelving.

Dual Locking Mechanism for Maximum Safety

Our heavy-duty drawer slides come equipped with a dual-locking system for added security and stability—something you won’t find in standard slides. Whether you're storing valuable tools or heavy equipment, the locking feature ensures drawers stay securely in place, even during transport. The double-row ball-bearing design guarantees smooth, quiet operation, while the nylon buffer reduces noise.

Easy, DIY-Friendly Installation

Installing these heavy-duty drawer slides is a breeze! To make the process even easier, we provide a detailed installation video tutorial. Within minutes, you'll have your drawer ready for use. Whether it's for a new project or an upgrade, our slides ensure professional results without the hassle.

More drawer slides for your project

If you need to buy in bulk, or you don't find the right drawer slide for your project on our website, contact us for a free wholesale quote and customize the drawer slide for your project !

AOLISHENG - Leading Brand Of Industrial Slide Rails

Aolisheng Hardware Co., Ltd. was established in 2009. It focuses on the production and development of heavy-duty rails, furniture rails and hinges, and is committed to providing high-quality rail and hinge solutions to customers around the world. The company is headquartered in Xiamen, China, with a factory area of more than 12,000 square meters, more than 130 production equipment, and a daily output of more than 40,000 pairs of rails. Aolisheng has passed many international certifications such as SGS, CE and RoHS, and its products are sold in more than 90 countries and regions around the world.

AOLISHENG

Why Choose AOLISHENG

  • Since its establishment in 2009, the company has been unswervingly committed to the research and development of heavy duty drawer slides for many years, constantly breaking through and innovating.
  • In our relentless pursuit of excellence, we have assembled a highly skilled Team of engineers and designers with a deep understanding of sliding dynamics. This expertise allows us to conceptualize and design products that are not only reliable but can be tailored to the unique needs of different clients.
  • With our unwavering commitment to innovation and dedication to quality, we've become the #1 selling drawer slide on Amazon.The market selection proves that AOLISHENG is the heavy-duty drawer slide brand you can trust.

FAQ

Side Mount Heavy Duty Drawer Slides

This is side mount installation design, the bottom installation is unable to guarantee load-bearing and normal operation. You can search for our brand, we have two bottom-mounted slide rails, you can see if it is suitable.

The slide can be installed on the side of the tool box so that the tool box can be pulled out from the inside.

It is not recommended to do this, this is a side-mounted slide, the load capacity of the bottom installation will be reduced by 90%

The maximum weight of 76MM wide drawer slides is 500 lbs, the maximum weight of 71MM wide drawer slides is 330 lbs, the maximum weight of 53MM wide drawer slides is 256 lbs, the maximum weight of 51MM wide drawer slides is 150 lbs, and the maximum weight of 47MM wide bottom-mounted drawers Rails, maximum weight 260 lbs
It is important to know the dimensions of the particular drawer you are considering and the weight of the stored items.
If you don't know what width of drawer slides to use, please contact us to give you the best solution.

Heavy duty drawer slides are specially designed to support heavier loads than normal drawer slides. They can hold the weight of larger, sturdier items such as car modifications, mechanical equipment, shelf tool boxes, and more. . Regular drawer slides have a lower load capacity and are suitable for lighter items such as bedroom chests of drawers or kitchen utensils.

Locking Heavy Duty Drawer Slides

Lock when the drawer is closed and when the drawer is fully opened。

NO, the lock handle is fixed by rivets and cannot be disassembled, but the third track can be disassembled. Press the lock handle to unlock the position and pull it out.

You will only need to engage the latches to unlock. While the drawer is sliding you will not need to apply continuous engagement on the latches. You will need to engage them to open to mid point, to open from mid point to fill open, to close from full open to mid point and to close from mid point to full close.

Bottom Mount Drawer Slides

1. The reserved height of the cabinet and the bottom plate is 53.8mm.

2. The maximum bearing capacity of the track is 260lb, and the width W of stair cabinet is recommended to be between 30-60cm.

3. The outer frame space must be longer than the track length D (remember to add the thickness occupied by door panel and back panel).

4. There can be no vertical plate support in the middle of the cabinet, otherwise it will affect the normal installation of the cabinet.

Other

You can contact us through our contact page! We will be happy to assist you.
